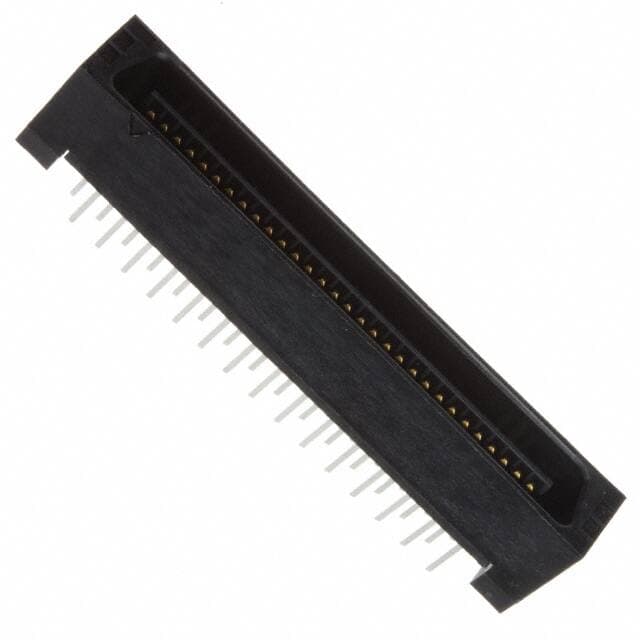

HIROSE FX2CA2-60P-1.27DSA(71)

Manufacturer No:

FX2CA2-60P-1.27DSA(71)

Manufacturer:

HIROSE

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FX2CA2-60P-1.27DSA(71) information

HIROSE FX2CA2-60P-1.27DSA(71) technical specifications, attributes, parameters and parts with similar specifications to HIROSE FX2CA2-60P-1.27DSA(71).

Type
Parameter

Factory Lead Time
10 Weeks

Contact Material
Bronze

Contact Plating
Gold

Mounting Type
BOARD

Housing Material
Plastic

Mounting Option 1
LOCKING

Mounting Style
STRAIGHT

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Connector Type
BOARD STACKING CONNECTOR

Number of Rows
2

Gender
Male

HTS Code
8536.69.40.40

Subcategory
D Type Connectors

Contact Finish - Mating
NOT SPECIFIED

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Mixed Contacts
NO

Option
GENERAL PURPOSE

Reach Compliance Code
unknown

Reliability
COMMERCIAL

Body Length or Diameter
1.896 inch

Number Of PCB Rows
4

Lead Pitch
1.27mm

Number of Contacts
60

PCB Contact Pattern
STAGGERED

Operating Temperature (Max)
85°C

Operating Temperature (Min)
-55°C

UL Flammability Code
94V-0

Housing Color
Black

Body Depth
0.413 inch

Rated Current (Signal)
0.5A

Contact Resistance
45mOhm

Insulation Resistance
1000000000Ohm

Mating Contact Pitch
0.05 inch

Termination Type
SOLDER

Dielectric Withstanding Voltage
300VAC V

PCB Contact Row Spacing
1.905 mm

Contact Finish Termination
TIN OVER NICKEL

Contact Pattern
STAGGERED

Plating Thickness
1?in

Length - Termination
0.13 inch

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for HIROSE FX2CA2-60P-1.27DSA(71).

Datasheets:

hiroseelectriccoltd-fx2bagpa-datasheets-3322.pdf

No product details available

User Guide
