HIROSE FX23-80P-0.5SV15
HIROSE FX23-80P-0.5SV15

HIROSE FX23-80P-0.5SV15

Manufacturer No:

FX23-80P-0.5SV15

Manufacturer:

HIROSE

Package:

Description:

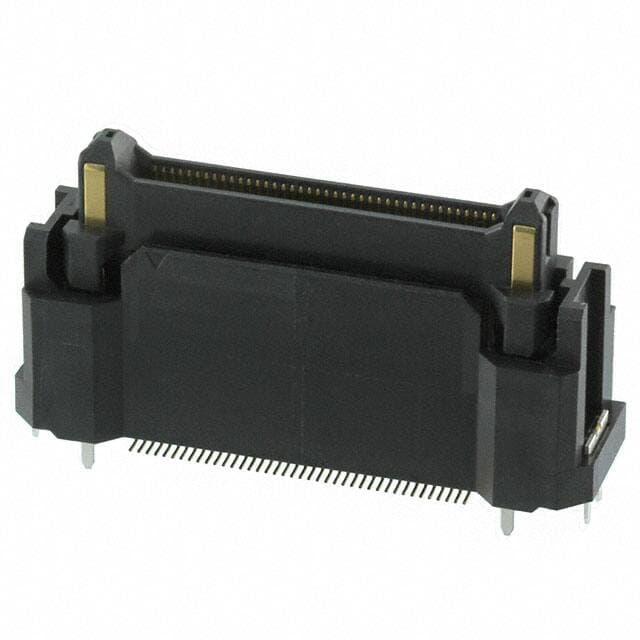

Header, Outer Shroud Contacts Tray 2 Rows 0.020 0.50mm Surface Mount 84 (80 + 4 Power) Positions FunctionMax? FX23 Gold COPPER ALLOY

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FX23-80P-0.5SV15 information

HIROSE FX23-80P-0.5SV15 technical specifications, attributes, parameters and parts with similar specifications to HIROSE FX23-80P-0.5SV15.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Contact Material
  • COPPER ALLOY
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Number of Pins
  • 80
  • Packaging
  • Tray
  • Series
  • FunctionMax? FX23
  • JESD-609 Code
  • e4
  • Feature
  • Board Guide
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • ECCN Code
  • EAR99
  • Connector Type
  • Header, Outer Shroud Contacts
  • Number of Positions
  • 84 (80 + 4 Power)
  • Number of Rows
  • 2
  • HTS Code
  • 8536.69.40.40
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Mixed Contacts
  • NO
  • Option
  • GENERAL PURPOSE
  • Pitch
  • 0.020 0.50mm
  • Orientation
  • Vertical
  • Reach Compliance Code
  • unknown
  • Contact Finish
  • Gold
  • Mating Information
  • MULTIPLE MATING PARTS AVAILABLE
  • Contact Gender
  • MALE
  • UL Flammability Code
  • 94V-0
  • Contact Finish Thickness
  • 3.94?in 0.10?m
  • Height Above Board
  • 0.507 12.88mm
  • Stack Height (Mating)
  • 15mm 20mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for HIROSE FX23-80P-0.5SV15.

Datasheets:

PCN Design/Specification:

FX23-80P-0.5SV15 Overview


The packaging contains Header, Outer Shroud Contacts.This product is packaged in a case marked Tray.There is a Surface Mount mounting type for the device.Product number FunctionMax? FX23 belongs to the FunctionMax? FX23 Series.Operating the device, it is possible to maintain Board Guide.This part must be mounted in a Surface Mount socket.A 80 pin is provided on the device.

FX23-80P-0.5SV15 Features


FunctionMax? FX23 series
Package / Case: Tray
Mounting Type:Surface Mount
80 pins


FX23-80P-0.5SV15 Applications


There are a lot of Hirose Electric Co Ltd
FX23-80P-0.5SV15 Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
