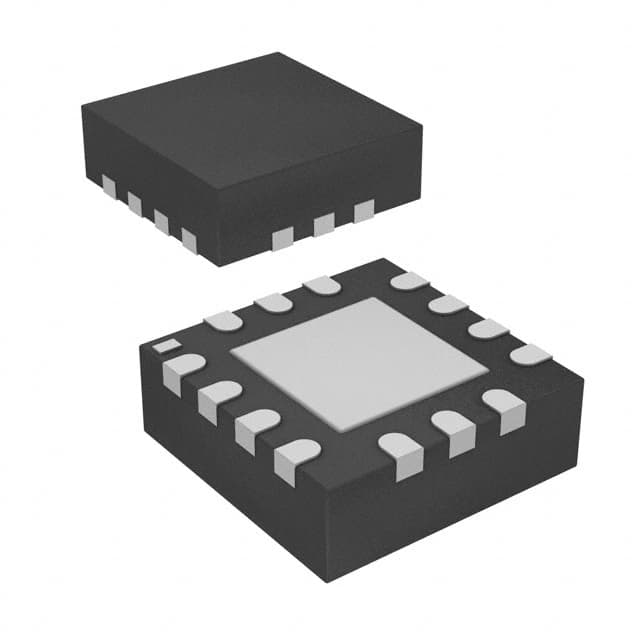

ONSEMI FUSB302MPX

Manufacturer No:

FUSB302MPX

Manufacturer:

ONSEMI

Package:

14-WFQFN Exposed Pad

Description:

2.8V~5.5V USB 3.1 Controllers Interface ICs QUAD Controller 14-WFQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FUSB302MPX information

ONSEMI FUSB302MPX technical specifications, attributes, parameters and parts with similar specifications to ONSEMI FUSB302MPX.

Type
Parameter

Lifecycle Status
ACTIVE, NOT REC (Last Updated: 4 days ago)

Factory Lead Time
6 Weeks

Mount
Surface Mount

Package / Case
14-WFQFN Exposed Pad

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Published
2016

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Not For New Designs

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
14

ECCN Code
EAR99

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

HTS Code
8542.31.00.01

Voltage - Supply
2.8V~5.5V

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Supply Voltage
3.3V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

JESD-30 Code
R-XQCC-N14

Function
Controller

Supply Voltage-Max (Vsup)
5.5V

Number of Channels
2

Analog IC - Other Type
POWER SUPPLY SUPPORT CIRCUIT

Adjustable Threshold
YES

Current - Supply
25?A

Protocol
USB

Standards
USB 3.1

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ONSEMI FUSB302MPX.

FUSB302MPX Overview

The 14-WFQFN Exposed Pad package contains it. It's packaged in the shape of a Tape & Reel (TR). To ensure reliable operation, the temperature should be regulated to -40°C~85°C. It should be able to operate on a 2.8V~5.5VV power supply. In it, there are 14 terminations. High efficiency is possible with a supply voltage of 3.3V. Currently, there is 25?A supply. There are currently 2 channels available. The maximum supply voltage (Vsup) is set to 5.5V. For normal operation, the supply voltage (Vsup) should be kept above 3V.

FUSB302MPX Features

FUSB302MPX Applications

There are a lot of ON Semiconductor
FUSB302MPX Controllers Interface ICs applications.

Desktop PCs
Notebook PCs
Notebook Docking stations
LAN Servers
PC Motherboards
0 to 10V Dimming Luminaires
Dimmable LED Power Supply
Dimming Control Devices
Commercial LED Lighting
Smart LED Lighting
