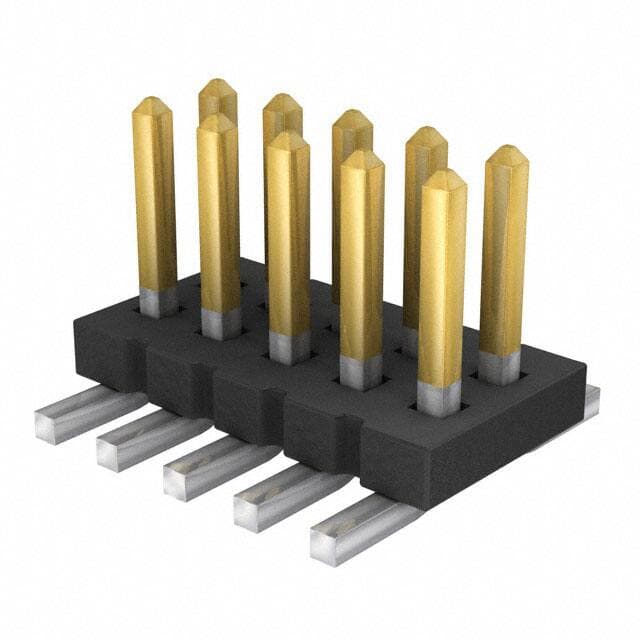

SAMTEC FTS-105-01-F-DV

Manufacturer No:

FTS-105-01-F-DV

Manufacturer:

Package:

Description:

FTS Series 2-Row Header, Cuttable Solder Phosphor Bronze Tube Surface Mount Gold Liquid Crystal Polymer (LCP) 10-Position Board to Board or Cable 0.034 0.86mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FTS-105-01-F-DV information

SAMTEC FTS-105-01-F-DV technical specifications, attributes, parameters and parts with similar specifications to SAMTEC FTS-105-01-F-DV.

Type
Parameter

Factory Lead Time
6 Weeks

Contact Material
Phosphor Bronze

Mount
Surface Mount

Mounting Type
Surface Mount

Contact Shape
Square

Insulation Material
Liquid Crystal Polymer (LCP)

Housing Material
Polymer

Operating Temperature
-55°C~125°C

Packaging
Tube

Series
FTS

Published
2000

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Connector Type
Header, Cuttable

Number of Positions
10

Number of Rows
2

Gender
Male

Additional Feature
LOW PROFILE

Fastening Type
Push-Pull

Contact Finish - Mating
Gold

MIL Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Option
GENERAL PURPOSE

Current Rating (Amps)
3.4A per Contact

Total Number of Contacts
10

Orientation
Straight

Depth
3.42mm

Insulation Height
0.034 0.86mm

Style
Board to Board or Cable

Number of Positions Loaded
All

Pitch - Mating
0.050 1.27mm

Row Spacing - Mating
0.050 (1.27mm)

Shrouding
Unshrouded

Contact Finish - Post
Tin

Contact Length - Mating
0.120 3.05mm

Housing Color
Black

Max Current Rating
1.75A

Height
4.32mm

Length
6.35mm

Contact Finish Thickness - Mating
3.00μin 0.076μm

Material Flammability Rating
UL94 V-0

Download datasheets and manufacturer documentation for SAMTEC FTS-105-01-F-DV.

FTS-105-01-F-DV Overview

This product is packaged in a Header, Cuttable carton.Surface Mount is the mounting type for the device.The product is packaged in a Tube case.It's part of the FTS Series.In addition, there are other features, such as LOW PROFILE, to mention just a few.Mounting of the part is based on Surface Mount.It runs at -55°C~125°C Operating Temperature.

FTS-105-01-F-DV Features

FTS series

FTS-105-01-F-DV Applications

There are a lot of Samtec Inc.
FTS-105-01-F-DV Rectangular Connectors applications.

Industrial Automation
Transportation
Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
