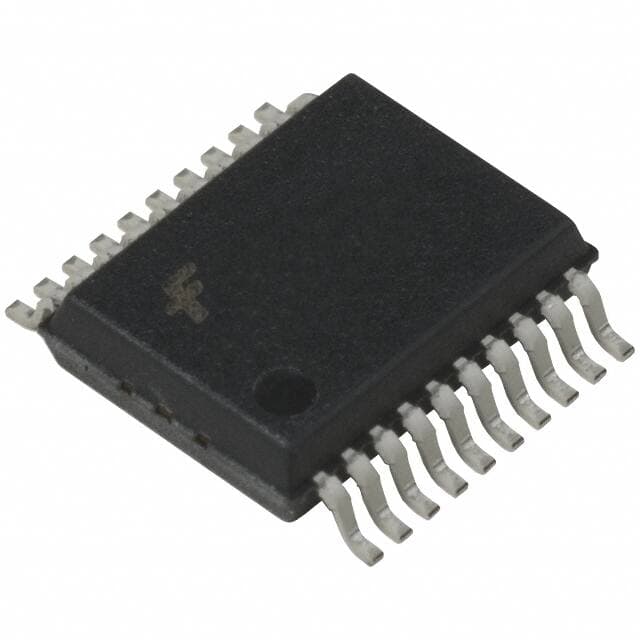

Rochester FST3345QSCX

Manufacturer No:

FST3345QSCX

Manufacturer:

Rochester

Package:

20-LSSOP (0.154, 3.90mm Width)

Description:

20 Terminations 4V~5.5V Signal switch 1 Functions

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FST3345QSCX information

Rochester FST3345QSCX technical specifications, attributes, parameters and parts with similar specifications to Rochester FST3345QSCX.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
20-LSSOP (0.154, 3.90mm Width)

Surface Mount
YES

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
20

Type
Bus Switch

Terminal Finish
MATTE TIN

Technology
CMOS

Voltage - Supply
4V~5.5V

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.635mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
20

JESD-30 Code
R-PDSO-G20

Circuit
8 x 1:1

Supply Voltage-Min (Vsup)
4V

Number of Ports
2

Number of Bits
8

Family
CBT/FST/QS/5C/B

Output Characteristics
3-STATE

Output Polarity
TRUE

Propagation Delay (tpd)
0.25 ns

Voltage Supply Source
Single Supply

Independent Circuits
1

Length
8.66mm

Width
3.9mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Rochester FST3345QSCX.

Datasheets:

rochesterelectronicsllc-fstu3384mtcx-datasheets-1897.pdf

rochesterelectronicsllc-fst3345qscx-datasheets-2210.pdf

FST3345QSCX Overview

As a means of saving space, digital switch is provided in the 20-LSSOP (0.154, 3.90mm Width).Tape & Reel (TR) represents its packaging.For mounting, digital switch ic uses the method Surface Mount.the multiplexers uses IC Bus Switch as the analog IC.A temperature of -40°C~85°C will not leave the turn signal swturn signal switchch susceptible to external influences.With a supply voltage of 4V~5.5V, designers have greater flexibility of digital controlled switch.Its basic configuration includes terminations in the 20 range.The multiplexer is supplied with 5V voltage.A component pin count of 20 is found on this turn signal switch.As a result, GULL WING represents the end of the conductors.The logic switch is a member of the CBT/FST/QS/5C/B family.There are 8 bits in signal multiplexer.Keeping the minimum supply voltage (Vsup) at 4V prevents some unnecessary failures.Vsup (maximum supply voltage) should be kept as 5.5V to prevent unnecessary failures.The signal switching operates with a resistance of 2.
