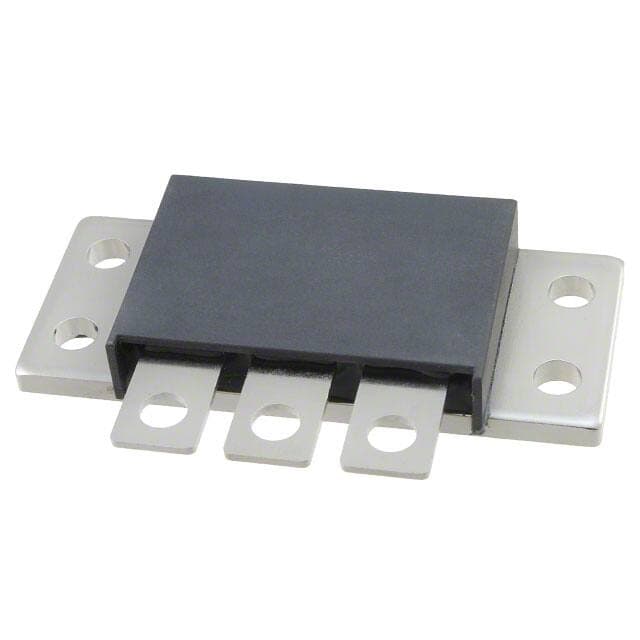

GeneSiC Semiconductor FST10045

Manufacturer No:

FST10045

Manufacturer:

GeneSiC Semiconductor

Package:

TO-249AB

Description:

Schottky Rectifier Diode 1 Pair Common Cathode Fast Recovery =< 500ns, > 200mA (Io) -55°C~150°C 100A 45V-DC 2-Element TO-249AB Chassis Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FST10045 information

GeneSiC Semiconductor FST10045 technical specifications, attributes, parameters and parts with similar specifications to GeneSiC Semiconductor FST10045.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 6 months ago)

Factory Lead Time
6 Weeks

Mount
Chassis Mount, Through Hole

Mounting Type
Chassis Mount

Package / Case
TO-249AB

Diode Element Material
SILICON

Packaging
Bulk

Published
2010

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
3

Termination
Solder

ECCN Code
EAR99

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Gender
Female

HTS Code
8541.10.00.80

Pitch
2.54mm

Terminal Position
SINGLE

Orientation
Right Angle

JESD-30 Code
R-PSFM-D3

Number of Contacts
11

Number of Elements
2

Speed
Fast Recovery =< 500ns, > 200mA (Io)

Diode Type
Schottky

Current - Reverse Leakage @ Vr
2mA @ 20V

Voltage - Forward (Vf) (Max) @ If
650mV @ 100A

Case Connection
ISOLATED

Forward Current
100A

Max Reverse Leakage Current
1?A

Operating Temperature - Junction
-55°C~150°C

Max Surge Current
1kA

Output Current-Max
50A

Application
POWER

Max Reverse Voltage (DC)
45V

Average Rectified Current
100A

Number of Phases
1

Peak Reverse Current
1A

Max Repetitive Reverse Voltage (Vrrm)
45V

Diode Configuration
1 Pair Common Cathode

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for GeneSiC Semiconductor FST10045.

FST10045 Overview

The maximum output voltage is 50A.Keeping the surge current under 1kA and preventing it from exceeding it should be the rule.Devices that have a forward voltage of 100A will operate.The reverse voltage peak of this device is 1A.The maximum reverse leakage current from a semiconductor device when reverse biased is 1?A.

FST10045 Features

a maximum output voltage of 50A
a peak voltage of 1A
a reverse voltage peak of 1A

FST10045 Applications

There are a lot of GeneSiC Semiconductor
FST10045 applications of rectifier diode array.

Rectifier for drives applications
Crowbar applications
Rectifiers for UBS
Battery chargers
Rectifiers in switch mode power supplies (SMPS)
Free wheeling diode in low voltage converters
General Rectification
