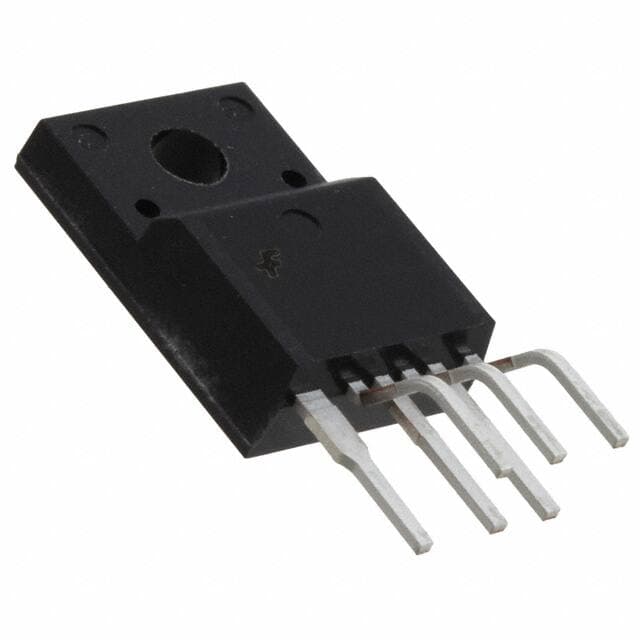

ONSEMI FSGM0465RUDTU
Manufacturer No:
FSGM0465RUDTU
Manufacturer:
Package:
TO-220-6 Full Pack, Formed Leads
Description:
6 Terminations 7.5V~26V 6 Pin FSGM0465R AC to DC power converter FPS? Series 1 Outputs 66kHz
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
FSGM0465RUDTU information
ONSEMI FSGM0465RUDTU technical specifications, attributes, parameters and parts with similar specifications to ONSEMI FSGM0465RUDTU.
- Type
- Parameter
- Mount
- Through Hole
- Mounting Type
- Surface Mount
- Package / Case
- TO-220-6 Full Pack, Formed Leads
- Number of Pins
- 6
- Weight
- 3.61g
- Operating Temperature
- -40°C~125°C TJ
- Packaging
- Tube
- Series
- FPS?
- JESD-609 Code
- e3
- Pbfree Code
- yes
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 6
- ECCN Code
- EAR99
- Terminal Finish
- Tin (Sn)
- Subcategory
- Switching Regulator or Controllers
- Max Power Dissipation
- 70W
- Terminal Position
- ZIG-ZAG
- Number of Functions
- 1
- Base Part Number
- FSGM0465R
- Number of Outputs
- 1
- Output Voltage
- 650V
- Operating Supply Voltage
- 26V
- Input Voltage-Nom
- 14V
- Analog IC - Other Type
- SWITCHING CONTROLLER
- Operating Supply Current
- 1.6mA
- Nominal Supply Current
- 1.6mA
- Current
- 1.8A
- Power Dissipation
- 45W
- Output Current
- 1.64A
- Voltage - Supply (Vcc/Vdd)
- 7.5V~26V
- Max Supply Current
- 2mA
- Topology
- Flyback
- Control Mode
- CURRENT-MODE
- Frequency - Switching
- 66kHz
- Control Technique
- PULSE WIDTH MODULATION
- Rise Time
- 24ns
- Fall Time (Typ)
- 24 ns
- Switcher Configuration
- SINGLE
- Max Output Power
- 48W
- Internal Switch(s)
- Yes
- Fault Protection
- Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit
- Max Duty Cycle
- 75 %
- Duty Cycle
- 70%
- Output Isolation
- Isolated
- Voltage - Start Up
- 12V
- Min Breakdown Voltage
- 650V
