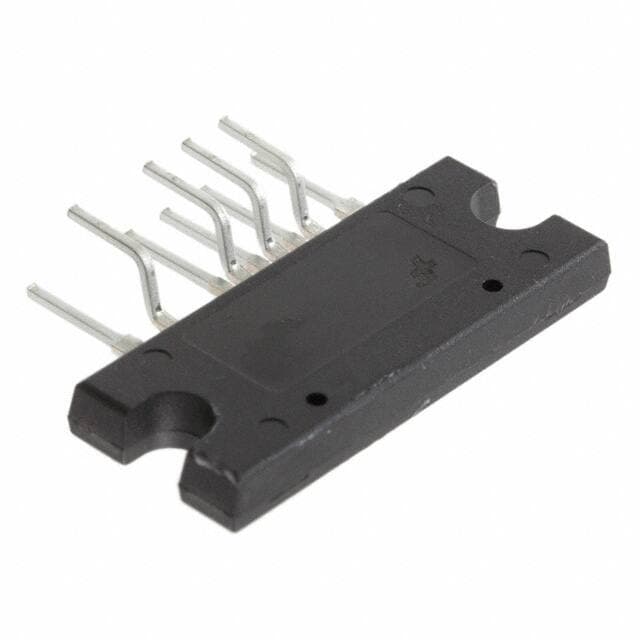

ONSEMI FSFR1800

Manufacturer No:

FSFR1800

Manufacturer:

ONSEMI

Package:

10-SIP Module, 9 Leads, Formed Leads

Description:

9 Terminations 11.3V~25V 9 Pin FSFR1800 AC to DC power converter FSFR Series 1 Outputs Up to 300kHz

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FSFR1800 information

ONSEMI FSFR1800 technical specifications, attributes, parameters and parts with similar specifications to ONSEMI FSFR1800.

Type
Parameter

Lifecycle Status
ACTIVE, NOT REC (Last Updated: 11 hours ago)

Factory Lead Time
8 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
10-SIP Module, 9 Leads, Formed Leads

Number of Pins
9

Weight
3.708632g

Operating Temperature
-40°C~130°C TJ

Packaging
Tube

Series
FSFR

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Not For New Designs

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
9

Resistance
770mOhm

Terminal Finish
Tin (Sn)

Power (Watts)
260W

Max Power Dissipation
11.7W

Terminal Position
ZIG-ZAG

Number of Functions
1

Supply Voltage
7.5V

Base Part Number
FSFR1800

Number of Outputs
1

Operating Supply Voltage
400V

Interface
Parallel

Nominal Supply Current
7mA

Power Dissipation
11.7W

Output Current
8A

Voltage - Supply (Vcc/Vdd)
11.3V~25V

Max Supply Current
11mA

Control Features
EN, Frequency Control

Topology
Half-Bridge

Frequency - Switching
Up to 300kHz

Nominal Input Voltage
25V

Internal Switch(s)
Yes

Fault Protection
Current Limiting, Over Load, Over Temperature, Over Voltage

Max Duty Cycle
50 %

Built-in Protections
OVER CURRENT; OVER VOLTAGE; THERMAL

Output Isolation
Isolated

Voltage - Breakdown
500V

Voltage - Start Up
14.5V

Length
26mm

Width
3.2mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ONSEMI FSFR1800.

PCN Design/Specification:

onsemiconductor-lvkit-pcndesignspecification-5808.pdf

PCN Packaging:

onsemiconductor-lvkit-pcnpackaging-5809.pdf

FSFR1800 Overview

A ac to dc converter of the package 10-SIP Module, 9 Leads, Formed Leads contains the ac to dc converter.In Tube case, the ac dc converter is available.There is a mounting point for this AC/DC converter in the way of Through Hole .The ac dc converter should be operated at a temperature of -40°C~130°C TJ °C to deliver its optimal performance.Switching frequency reaches Up to 300kHz Hz.This AC/DC converter is suitable for operation in the range of 11.3V~25V supply voltage (Vcc/Vdd).In total, it has 9 terminations.There are 9 pins on this ac/dc converter.Through Hole is the recommended mounting method for the ac dc converters.It belongs to the manufacturer family of FSFR .Search similar acdc converters based on FSFR1800 family members.Running 1 outputs is available.Current output is set to 8A .As a result, its output voltage is 24V .You are able to read the REACH SVHC standard at: No SVHC .An interface IC conducts when its supply voltage is 400V .AC to DC converter can handle a maximum supply current of 11mA .In all situations, this AC to DC converter should be set to 7.5V .A measurement of the resistance of this power AC DC indicates that it is 770mOhm .

FSFR1800 Features

Packaged with 10-SIP Module, 9 Leads, Formed Leads
Switching Frequency at Up to 300kHz
With 9 pins
Output Current at 8A
Operating Supply Voltage at the range of 400V
Resistance : 770mOhm

FSFR1800 Applications

There are a lot of ON Semiconductor
FSFR1800 AC DC Converters applications.

Records
Linear Adapter Replacements
Chargers for cell/cordless phones
PDAs
MP3
Portable audio
Adapters
Networking
Battery Chargers
Power Adaptors
