ONSEMI FSB50550AS
ONSEMI FSB50550AS

ONSEMI FSB50550AS

Manufacturer No:

FSB50550AS

Manufacturer:

ONSEMI

Package:

23-PowerSMD Module, Gull Wing

Description:

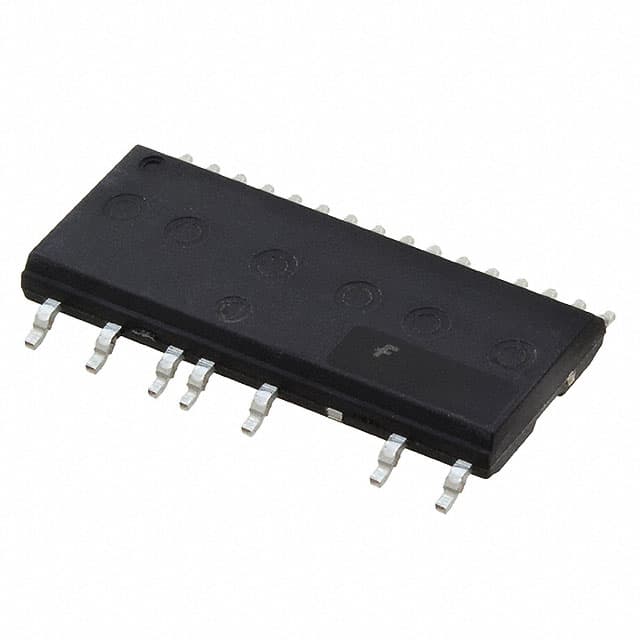

Intelligent Power Module, 500V, 5A

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FSB50550AS information

ONSEMI FSB50550AS technical specifications, attributes, parameters and parts with similar specifications to ONSEMI FSB50550AS.

  • Type
  • Parameter
  • RDS(on) (Ω)
  • 1
  • Package Type
  • SMD-023
  • Case Outline
  • MODEM
  • MSL Temp (°C)
  • 260
  • Container Type
  • REEL
  • Family
  • SPM5
  • Rated Voltage Min (V)
  • 500
  • VCE(sat) @ 25 °C Typ (V)
  • -
  • Shutdown Pin
  • No
  • Substrate
  • Full Pack
  • MSL Type
  • 3
  • Type
  • 3-Phase Inverter MOSFET
  • Input Logic
  • Active High
  • Emitter Configuration
  • 3 Source Pins
  • Container Qty.
  • 450
  • IO @ 25 °C Min (A)
  • 2
  • Mounting Type
  • SMD

Download datasheets and manufacturer documentation for ONSEMI FSB50550AS.

Package Drawing:

Datasheet:

FSB50550AS is an advanced Motion SPM® 5 series based on fast-recovery MOSFET (FRFET®) technology as a compact inverter solution for small power motor drive applications such as fans and pumps. FSB50550AS contains six FRFET MOSFETs, three half-bridge gate driver HVICs with temperature sensing, and three bootstrap diodes in a compact package fully isolated and optimized for thermal performance. FSB50550AS features low electromagnetic interference (EMI) characteristics through optimizing switching speed and reducing parasitic inductance. Since FSB50550AS employs MOSFETs as power switches, it provides much more ruggedness and larger safe operating area (SOA) than IGBT-based power modules. FSB50550AS is the right solution for compact and reliable inverter designs where the assembly space is constrained.

Application

  • Motion Control - Home Appliance/Industrial Motor

Feature

  • 500V RDS(on)=1.4Ω(max) FRFET® MOSFET 3-phase inverter including HVICs
  • Three separate open-emitter pins from low side MOSFETs for three leg current sensing
  • HVIC for gate driving and under-voltage protection
  • Active-High interface, can work with 3.3V/5V logic
  • Optimized for low electromagnetic interference
  • Isolation voltage rating of 1500Vrms for 1min.
  • Temperature sensing built in HVIC
  • Embedded bootstrap diodes in the package
  • Moisture Sensitive Level (MSL) 3
  • RoHS compliant
