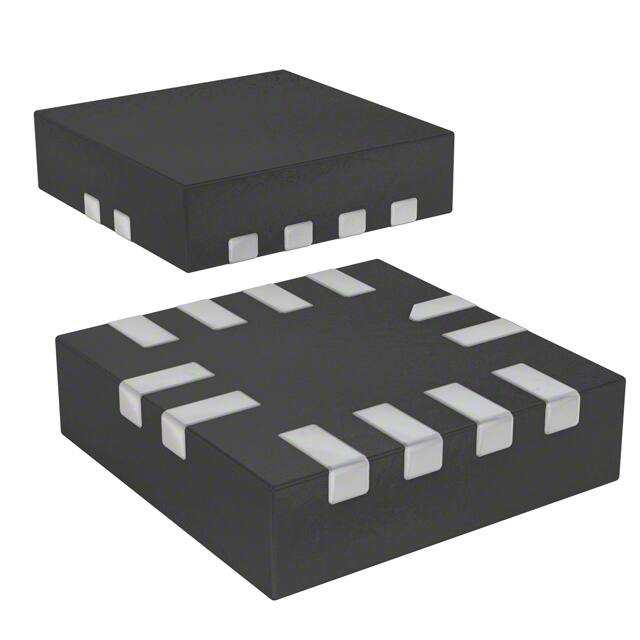

ONSEMI FSA3031UMX
ONSEMI FSA3031UMX

ONSEMI FSA3031UMX

Manufacturer No:

FSA3031UMX

Manufacturer:

ONSEMI

Package:

12-UFQFN

Description:

0.4mm Specialized Interface IC FSA3031 12 Pin 12-UFQFN

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FSA3031UMX information

ONSEMI FSA3031UMX technical specifications, attributes, parameters and parts with similar specifications to ONSEMI FSA3031UMX.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 3 days ago)
  • Factory Lead Time
  • 4 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 12-UFQFN
  • Number of Pins
  • 12
  • Weight
  • 13.155386mg
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2016
  • JESD-609 Code
  • e4
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 12
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Nickel/Palladium/Gold (Ni/Pd/Au)
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -40°C
  • Applications
  • Cell Phones, Digital Cameras, Media Players
  • Subcategory
  • Multiplexer or Switches
  • Voltage - Supply
  • 5.25V
  • Terminal Position
  • QUAD
  • Terminal Form
  • NO LEAD
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Terminal Pitch
  • 0.4mm
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Base Part Number
  • FSA3031
  • Number of Outputs
  • 3
  • Qualification Status
  • Not Qualified
  • Temperature Grade
  • INDUSTRIAL
  • Analog IC - Other Type
  • AUDIO/VIDEO SWITCH
  • Min Input Voltage
  • 2.5V
  • Max Input Voltage
  • 4.5V
  • On-State Resistance (Max)
  • 6.5Ohm
  • Height
  • 500?m
  • Length
  • 1.8mm
  • Width
  • 1.8mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for ONSEMI FSA3031UMX.

Datasheets:

PCN Design/Specification:

PCN Packaging:

FSA3031UMX Description


A bidirectional, low-power, high-speed, 3:1, twin USB2.0, and MHL switch is the FSA3031. Double-pole, triple-throw (DP3T) switch configuration that is designed to transition between two high- or full-speed USB and Mobile High-Definition Link sources (MHLTM Rev. 2.0 specification). For applications when the Vcc supply is unpowered (Vcc=0), the FSA3031 has specialized circuitry on the switch VO pins that enables the device to resist an over-voltage state. Even when the control voltage delivered to the control pins is lower than the supply voltage, this switch is made to consume the least amount of current possible (Vcc). This functionality, which enables direct communication with the general-purpose I/Os of the baseband processor, is particularly beneficial for mobile applications like cell phones.



FSA3031UMX Features


Low On Capacitance: 4.6 pF/6.75 pF MHL/USB (Typical)

Low Power Consumption: 30 ?A Maximum

Supports MHL Rev. 2.0

Passes 1080 p/60 fps (3 Gbps) MHL Data Eye

Diagram Mask Compliance

MHL Data Rate: 24.7Gbps with Ideal Input Source

Packaged in 12-Lead UMLP(1.8x 1.8 mm)

Over-Voltage Tolerance (OVT) on all USB Ports

Up to 5.25 V without External Components



FSA3031UMX Applications


Cell Phones and Digital Cameras
