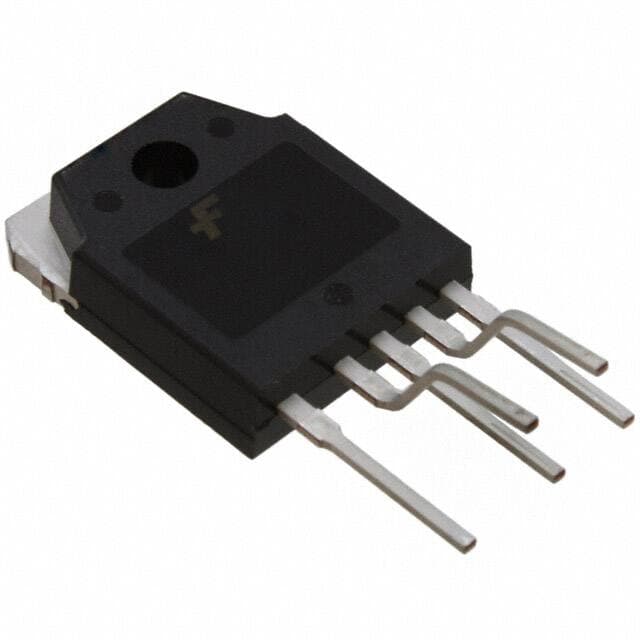

ONSEMI FS7M0680YDTU

Manufacturer No:

FS7M0680YDTU

Manufacturer:

ONSEMI

Package:

TO-3P-5 Formed Leads

Description:

5 Terminations 9V~30V 5 Pin FS7M0680 AC to DC power converter FPS? Series 1 Outputs 66kHz

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FS7M0680YDTU information

ONSEMI FS7M0680YDTU technical specifications, attributes, parameters and parts with similar specifications to ONSEMI FS7M0680YDTU.

Type
Parameter

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
TO-3P-5 Formed Leads

Number of Pins
5

Weight
6.301g

Operating Temperature
-25°C~85°C TA

Packaging
Tube

Series
FPS?

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
5

Max Power Dissipation
150W

Terminal Position
ZIG-ZAG

Number of Functions
1

Base Part Number
FS7M0680

Number of Outputs
1

Output Voltage
800V

Operating Supply Voltage
30V

Input Voltage-Nom
14V

Analog IC - Other Type
SWITCHING REGULATOR

Operating Supply Current
12mA

Nominal Supply Current
8mA

Power Dissipation
150W

Output Current
6A

Control Features
Soft Start

Topology
Flyback, Forward

Control Mode
CURRENT-MODE

Frequency - Switching
66kHz

Control Technique
PULSE WIDTH MODULATION

Rise Time
150ns

Fall Time (Typ)
130 ns

Internal Switch(s)
Yes

Fault Protection
Current Limiting, Over Load, Over Temperature, Over Voltage

Max Duty Cycle
55 %

Duty Cycle
50%

Output Isolation
Isolated

Voltage - Start Up
15V

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ONSEMI FS7M0680YDTU.

ReachStatement:

onsemiconductor-rmpa2550-reachstatement-3729.pdf

FS7M0680YDTU Overview

A ac to dc converter of the package TO-3P-5 Formed Leads contains the ac to dc converter.In Tube case, the ac dc converter is available.There is a mounting point for this AC/DC converter in the way of Through Hole .The ac dc converter should be operated at a temperature of -25°C~85°C TA °C to deliver its optimal performance.SWITCHING REGULATOR analog ICs are employed in this AC DC converter.Switching frequency reaches 66kHz Hz.This AC/DC converter is suitable for operation in the range of 9V~30V supply voltage (Vcc/Vdd).In total, it has 5 terminations.There are 5 pins on this ac/dc converter.Through Hole is the recommended mounting method for the ac dc converters.It belongs to the manufacturer family of FPS? .Search similar acdc converters based on FS7M0680 family members.Running 1 outputs is available.Current output is set to 6A .As a result, its output voltage is 800V .An interface IC conducts when its supply voltage is 30V .

FS7M0680YDTU Features

Packaged with TO-3P-5 Formed Leads
Switching Frequency at 66kHz
With 5 pins
Output Current at 6A
Operating Supply Voltage at the range of 30V

FS7M0680YDTU Applications

There are a lot of ON Semiconductor
FS7M0680YDTU AC DC Converters applications.

Records
Linear Adapter Replacements
Chargers for cell/cordless phones
PDAs
MP3
Portable audio
Adapters
Networking
Battery Chargers
Power Adaptors
