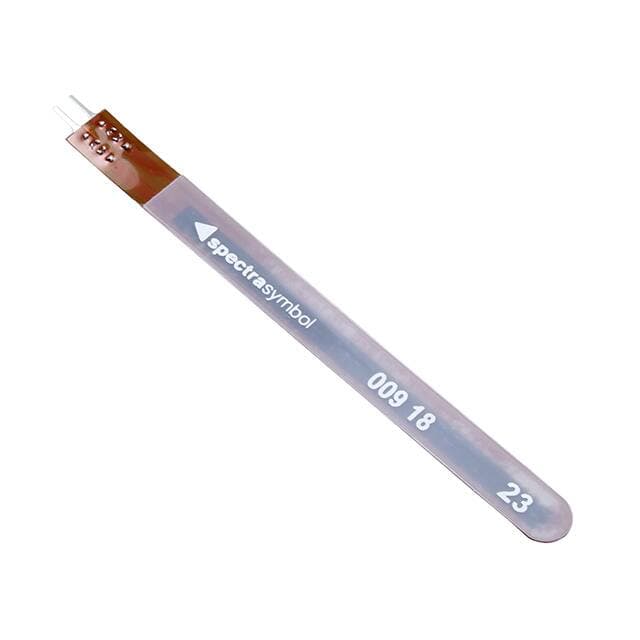

Spectra Symbol FS2-L-055-103-ST

Manufacturer No:

FS2-L-055-103-ST

Manufacturer:

Spectra Symbol

Package:

Sensor Strip

Description:

FS Series For Measuring Linear Position Solder Tab Flexible Membrane - Linear -35°C~80°C Sensor Strip

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FS2-L-055-103-ST information

Spectra Symbol FS2-L-055-103-ST technical specifications, attributes, parameters and parts with similar specifications to Spectra Symbol FS2-L-055-103-ST.

Type
Parameter

Factory Lead Time
6 Weeks

Mounting Type
Custom

Package / Case
Sensor Strip

Operating Temperature
-35°C~80°C

Packaging
Bulk

Series
FS

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Resistance
25kOhm

Technology
Resistive

Termination Style
Solder Tab

Actuator Type
Flexible Membrane - Linear

Resistance Tolerance
±30%

For Measuring
Linear Position

Linear Range
0 ~ 55.37mm (0 ~ 2.18)

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Spectra Symbol FS2-L-055-103-ST.

FS2-L-055-103-ST Overview

In order to prevent damage to the linear position measuring sensors, the devices are placed into Sensor Strip packages. The electronic component in question is packaged in the Bulk. It is possible to counteract the passage of a current of 25kOhm through the linear position measuring sensors.

FS2-L-055-103-ST Features

Operating Temperature: -35°C~80°C
FS Series
Package / Case: Sensor Strip
Mounting Type: Custom
Linear Range: 0 ~ 55.37mm (0 ~ 2.18)
Resistance Tolerance: ±30%

FS2-L-055-103-ST Applications

There are a lot of Spectra Symbol
FS2-L-055-103-ST Angle & Linear Position Measuring Sensors applications.

Automotive temperature range
Robotic joint position detection
Industrial motor position control
Medical robots and fitness equipment
Absolute Rotary Position Sensor
Steering Wheel Position Sensor
Pedal Position Sensor
Motor-shaft Position Sensor
Throttle Position Sensor
Float-Level Sensor
