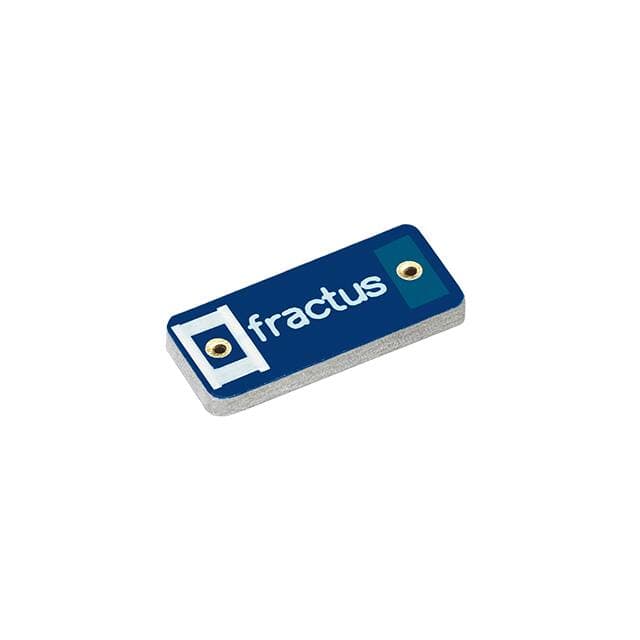

Fractus Antennas S.L. FR05-S1-N-0-104

Manufacturer No:

FR05-S1-N-0-104

Manufacturer:

Fractus Antennas S.L.

Package:

SMD/SMT

Description:

1 Bands Chip UHF 2GHz~3GHz Surface Mount Solder 2.45GHz 1.1dBi Tape & Reel (TR) 0.035 0.90mm 802.11b/g/n, Bluetooth, WLAN, Zigbee?

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FR05-S1-N-0-104 information

Fractus Antennas S.L. FR05-S1-N-0-104 technical specifications, attributes, parameters and parts with similar specifications to Fractus Antennas S.L. FR05-S1-N-0-104.

Type
Parameter

Factory Lead Time
4 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
SMD/SMT

Number of Pins
2

Packaging
Tape & Reel (TR)

Series
Slim Reach Xtend?

Published
2015

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Termination
Solder

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Applications
802.11b/g/n, Bluetooth, WLAN, Zigbee?

Frequency
2.4GHz

Impedance
50Ohm

Gain
1.1dBi

Frequency Range
2.4GHz~2.5GHz

RF Family/Standard
802.15.4, Bluetooth, WiFi

Antenna Type
Chip

VSWR
2

Number of Bands
1

Frequency Group
UHF 2GHz~3GHz

Frequency (Center/Band)
2.45GHz

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Fractus Antennas S.L. FR05-S1-N-0-104.

Datasheets:

fractusantennassl-ebfr05s1n0104-datasheets-1797.pdf

fractusantennassl-ebfr05s1n0104-datasheets-1798.pdf

FR05-S1-N-0-104 Overview

The Surface Mount allows it to be used for RF Antennas in general.Slim Reach Xtend? is a series of Antenna RFs.Tape & Reel (TR) solid enclosure protects the RF modulator.In most RF ic designs, it is qualified as a Surface Mount.Due to its SMD/SMT packaging, the RF ic is convenient for international shipping.You can find the functions of the 2 pins in the RF modulator.As determined by test statistics, the RF Antennas would operate at -40°C.Temperatures over 85°C should not be allowed for the RF Antennas to operate.
