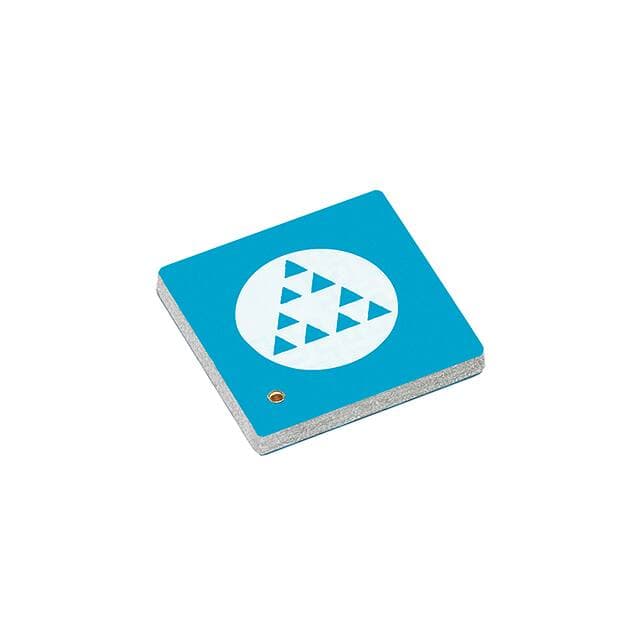

Fractus Antennas S.L. FR05-S1-N-0-001

Manufacturer No:

FR05-S1-N-0-001

Manufacturer:

Fractus Antennas S.L.

Package:

SMD/SMT

Description:

1 Bands Chip UHF 2GHz~3GHz Surface Mount Solder 2.45GHz 1.3dBi Tape & Reel (TR) 0.031 0.80mm 802.11b/g/n, Bluetooth, WLAN, Zigbee?

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FR05-S1-N-0-001 information

Fractus Antennas S.L. FR05-S1-N-0-001 technical specifications, attributes, parameters and parts with similar specifications to Fractus Antennas S.L. FR05-S1-N-0-001.

Type
Parameter

Factory Lead Time
4 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
SMD/SMT

Number of Pins
4

Packaging
Tape & Reel (TR)

Series
Reach Xtend?

Published
2015

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Termination
Solder

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Applications
802.11b/g/n, Bluetooth, WLAN, Zigbee?

Frequency
2.4GHz

Impedance
50Ohm

Gain
1.3dBi

Frequency Range
2.4GHz~2.5GHz

RF Family/Standard
802.15.4, Bluetooth, WiFi

Antenna Type
Chip

VSWR
2

Number of Bands
1

Frequency Group
UHF 2GHz~3GHz

Frequency (Center/Band)
2.45GHz

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Fractus Antennas S.L. FR05-S1-N-0-001.

Datasheets:

fractusantennassl-ebfr05s1n0001-datasheets-1749.pdf

fractusantennassl-ebfr05s1n0001-datasheets-1750.pdf

FR05-S1-N-0-001 Overview

The Surface Mount allows it to be used for RF Antennas in general.Reach Xtend? is a series of Antenna RFs.Tape & Reel (TR) solid enclosure protects the RF modulator.In most RF ic designs, it is qualified as a Surface Mount.Due to its SMD/SMT packaging, the RF ic is convenient for international shipping.You can find the functions of the 4 pins in the RF modulator.As determined by test statistics, the RF Antennas would operate at -40°C.Temperatures over 85°C should not be allowed for the RF Antennas to operate.
