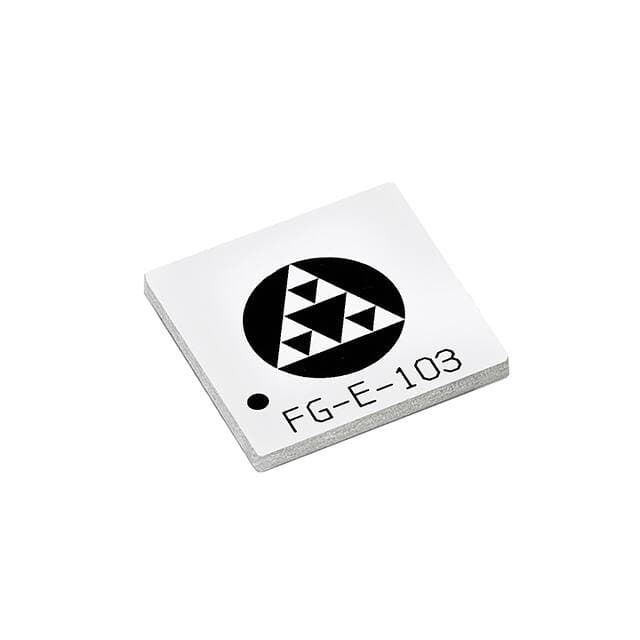

Fractus Antennas S.L. FR05-S1-E-0-103

Manufacturer No:

FR05-S1-E-0-103

Manufacturer:

Fractus Antennas S.L.

Package:

SMD/SMT

Description:

3 Bands Chip UHF 1GHz~2GHz Surface Mount Solder 1.561GHz 1.575GHz 1.602GHz 1.4dBi, 1.2dBi, 1.3dBi Tape & Reel (TR) 0.035 0.90mm Beidou, GLONASS, GPS

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FR05-S1-E-0-103 information

Fractus Antennas S.L. FR05-S1-E-0-103 technical specifications, attributes, parameters and parts with similar specifications to Fractus Antennas S.L. FR05-S1-E-0-103.

Type
Parameter

Factory Lead Time
4 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
SMD/SMT

Number of Pins
4

Packaging
Tape & Reel (TR)

Series
Geofind?

Published
2015

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Termination
Solder

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Applications
Beidou, GLONASS, GPS

Impedance
50Ohm

Gain
1.4dBi, 1.2dBi, 1.3dBi

Frequency Range
1.598GHz~1.606GHz

RF Family/Standard
Navigation

Antenna Type
Chip

VSWR
2

Number of Bands
3

Frequency Group
UHF 1GHz~2GHz

Frequency (Center/Band)
1.561GHz 1.575GHz 1.602GHz

Height (Max)
0.035 0.90mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Fractus Antennas S.L. FR05-S1-E-0-103.

Datasheets:

fractusantennassl-ebfr05s1e0103-datasheets-1628.pdf

fractusantennassl-ebfr05s1e0103-datasheets-1629.pdf

FR05-S1-E-0-103 Overview

A generalization of RF Antennas can be made using Surface Mount.There are several Antenna RFs in the Geofind? series.Packaging is solid wRF modulatorh a Tape & Reel (TR) enclosure.The Surface Mount makes it suitable for most RF ics.Shipped in SMD/SMT, the RF ic is easy to ship overseas.For details about the functions of 4 pins, please refer to the RF modulator.Test statistics indicate that the RF Antennas would operate at -40°C degrees Celsius.An environment with a temperature greater than 85°C should not be used to operate the RF Antennas.

FR05-S1-E-0-103 Features

With Surface Mount
Geofind? series
4 pins
Above 85°C degrees Celsius

FR05-S1-E-0-103 Applications

There are a lot of Fractus Antennas S.L.
FR05-S1-E-0-103 RF Antennas applications.

Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
GPS
GLONASS
BeiDou
Galileo
