Manufacturer No:

FPF2006

Manufacturer:

ONSEMI

Package:

5-TSSOP, SC-70-5, SOT-353

Description:

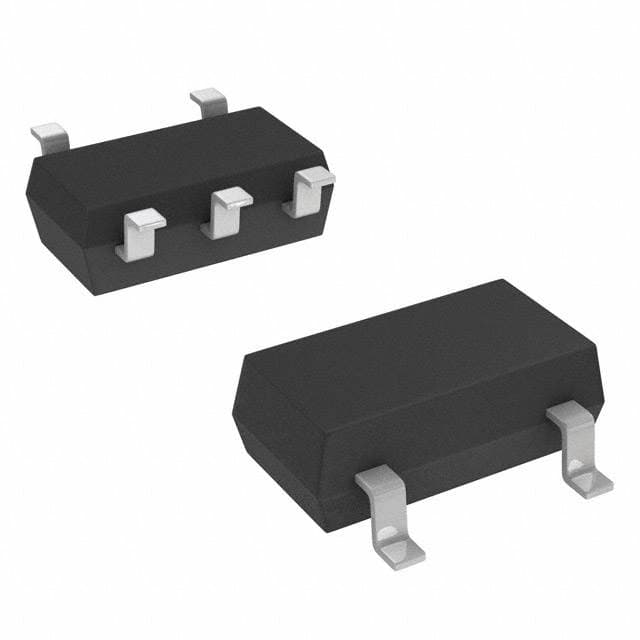

P-Channel PMIC IntelliMAX? Series FPF2006 5 Pin 5-TSSOP, SC-70-5, SOT-353

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FPF2006 information

ONSEMI FPF2006 technical specifications, attributes, parameters and parts with similar specifications to ONSEMI FPF2006.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 3 days ago)
  • Factory Lead Time
  • 13 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 5-TSSOP, SC-70-5, SOT-353
  • Number of Pins
  • 5
  • Weight
  • 23g
  • Operating Temperature
  • -40°C~85°C TA
  • Packaging
  • Tape & Reel (TR)
  • Series
  • IntelliMAX?
  • Published
  • 1996
  • JESD-609 Code
  • e4
  • Feature
  • Status Flag
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 5
  • ECCN Code
  • EAR99
  • Resistance
  • 700mOhm
  • Terminal Finish
  • Nickel/Palladium/Gold (Ni/Pd/Au)
  • Power Rating
  • 250mW
  • Max Power Dissipation
  • 250mW
  • Terminal Position
  • DUAL
  • Terminal Form
  • GULL WING
  • Current Rating
  • 100mA
  • Base Part Number
  • FPF2006
  • Number of Outputs
  • 1
  • Output Voltage
  • 6V
  • Output Type
  • P-Channel
  • Max Output Current
  • 100mA
  • Voltage
  • 5.5V
  • Interface
  • On/Off
  • Analog IC - Other Type
  • POWER SUPPLY SUPPORT CIRCUIT
  • Current
  • 200mA
  • Output Configuration
  • High Side
  • Power Dissipation
  • 250mW
  • Output Current
  • 100mA
  • Voltage - Supply (Vcc/Vdd)
  • Not Required
  • Input Type
  • Non-Inverting
  • Turn On Delay Time
  • 50 ?s
  • Switch Type
  • General Purpose
  • Min Input Voltage
  • 1.8V
  • Max Input Voltage
  • 5.5V
  • Rise Time
  • 10?s
  • Fall Time (Typ)
  • 100 ns
  • Nominal Input Voltage
  • 5.5V
  • Turn-Off Delay Time
  • 500 ns

Download datasheets and manufacturer documentation for ONSEMI FPF2006.

Datasheets:

PCN Design/Specification:

PCN Packaging:

FPF2006 Overview


It's packaged in the way of a Tape & Reel (TR).It's included in the 5-TSSOP, SC-70-5, SOT-353 package.The mounting type of the LED driver is Surface Mount.It owns General Purpose switch type.The temperature should be set to -40°C~85°C TA to ensure reliable functioning.By default, it is set to output 1.It uses a supply voltage of Not Required to operate.It has a maximum output voltage of P-Channel volts.The lighting driver has Status Flag features.It belongs to the FPF2006 family.There are 5 terminations in it.5 pins are used for operation.There are 1 functions of the LED driver.To meet the operation criteria, the maximum output current drops to 100mA.It is positioned in the direction of Surface Mount.The LED driver has 700mOhm resistance.The IntelliMAX? series includes this electrical component.The output current is set to 100mA in this case.This gadget uses an analog IC, which is POWER SUPPLY SUPPORT CIRCUIT in this case.Its maximum input voltage is 5.5V volts.It has a 1.8V volt minimum input voltage.

FPF2006 Features


Resistance of 700mOhm


FPF2006 Applications


There are a lot of ON Semiconductor
FPF2006 Power Switches ICs applications.


  • Smartphone and PDA
  • Portable GPS Device
  • Set-top-box
  • USB Power Distribution
  • Notebook PC
  • Telecom and Network Systems
  • PC Card Hot Swap
  • Storage Drives
  • Portable/Handheld Devices
  • Wireless/Networking Cards
