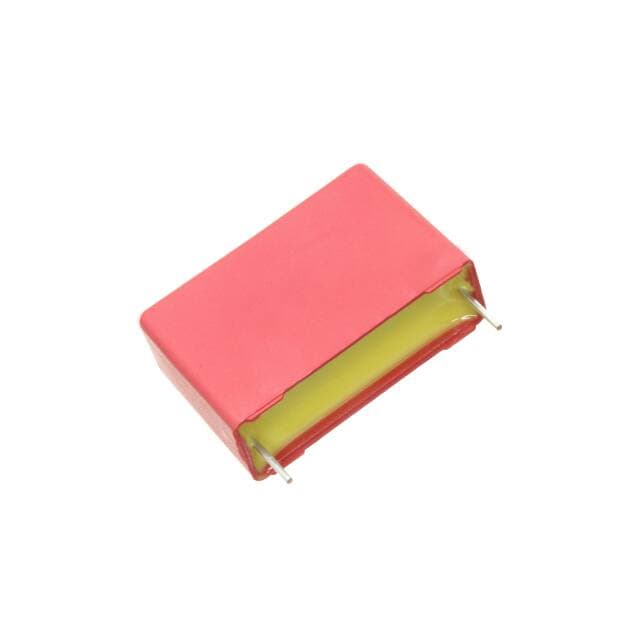

WIMA FKP1R016804F00KSSD

Manufacturer No:

FKP1R016804F00KSSD

Manufacturer:

WIMA

Package:

Radial

Description:

6800pF Film Capacitor ±10% Radial PC Pins 1250V 1.25kV-DC 600V-AC Polypropylene (PP), Metallized

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FKP1R016804F00KSSD information

WIMA FKP1R016804F00KSSD technical specifications, attributes, parameters and parts with similar specifications to WIMA FKP1R016804F00KSSD.

Type
Parameter

Factory Lead Time
11 Weeks

Mounting Type
Through Hole

Package / Case
Radial

Surface Mount
NO

Terminal Shape
WIRE

Number of Pins
2

Dielectric Material
Polypropylene (PP), Metallized

Operating Temperature
-55°C~100°C

Packaging
Bulk

Published
2008

Size / Dimension
0.709Lx0.315W 18.00mmx8.00mm

Tolerance
±10%

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Number of Terminations
2

Termination
PC Pins

ECCN Code
EAR99

Terminal Finish
Tin (Sn)

Applications
High Frequency, Switching; High Pulse, DV/DT

Additional Feature
RATED AC VOLTAGE (V): 600

Capacitance
6800pF

Voltage - Rated DC
1250V 1.25kV

Voltage - Rated AC
600V

Lead Pitch
15mm

Capacitor Type
FILM CAPACITOR

Dielectric
PP

Lead Spacing
0.591 15.00mm

Lead Diameter
800 ?m

Dissipation Factor
0.1 %

Rated (AC) Voltage (URac)
600V

Height
15mm

Height Seated (Max)
0.591 15.00mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for WIMA FKP1R016804F00KSSD.

Datasheets:

wima-fkp1u002204b00jssd-datasheets-3516.pdf

FKP1R016804F00KSSD Overview

The lead spacing of this electrical device is 0.591 15.00mm.Powering systems requires an internal rated (AC) voltage (URac) of 600V.The device is capable of operating at the temperature of -55°C~100°C.

FKP1R016804F00KSSD Features

an internal rated (AC) voltage (URac) of 600V

FKP1R016804F00KSSD Applications

There are a lot of WIMA
FKP1R016804F00KSSD applications of film capacitors.

Blocking
Coupling, decoupling
Bypassing
RFI for automotive
Industrial and automotive inverters
Battery management system
Test and measuring equipment
RF Modules
Mobile communications
Satellite TV
