HIROSE FH36W-27S-0.3SHW(50)
HIROSE FH36W-27S-0.3SHW(50)

HIROSE FH36W-27S-0.3SHW(50)

Manufacturer No:

FH36W-27S-0.3SHW(50)

Manufacturer:

HIROSE

Package:

Description:

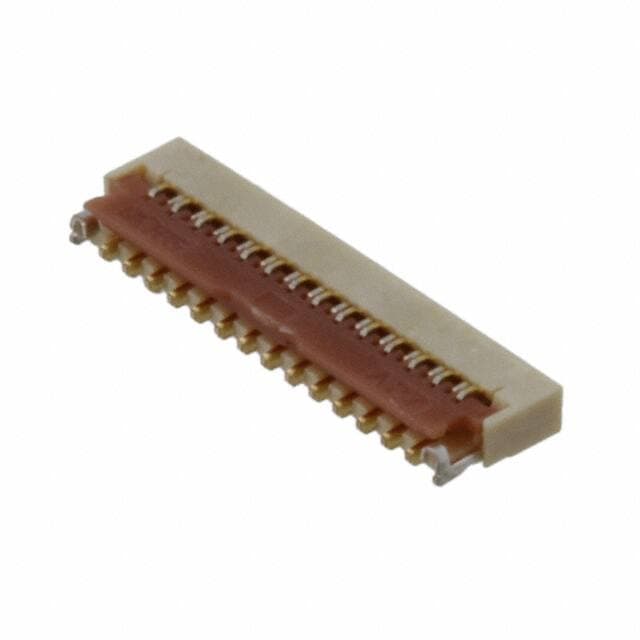

FH36 Series FPC Contacts, Bottom Tape & Reel (TR) 0.012 0.30mm Solder 27 Positions Surface Mount, Right Angle Gold -55°C~85°C 0.2A

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FH36W-27S-0.3SHW(50) information

HIROSE FH36W-27S-0.3SHW(50) technical specifications, attributes, parameters and parts with similar specifications to HIROSE FH36W-27S-0.3SHW(50).

  • Type
  • Parameter
  • Factory Lead Time
  • 10 Weeks
  • Contact Material
  • Phosphor Bronze
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount, Right Angle
  • Housing Material
  • Liquid Crystal Polymer (LCP), Halogen Free
  • Actuator Material
  • Polyamide (PA), Nylon
  • Operating Temperature
  • -55°C~85°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • FH36
  • JESD-609 Code
  • e4
  • Feature
  • Zero Insertion Force (ZIF)
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • ECCN Code
  • EAR99
  • Number of Positions
  • 27
  • Number of Rows
  • 1
  • Voltage - Rated
  • 30V
  • Additional Feature
  • LOW PROFILE
  • HTS Code
  • 8536.69.40.51
  • Subcategory
  • Headers and Edge Type Connectors
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Mixed Contacts
  • NO
  • Option
  • GENERAL PURPOSE
  • Current Rating (Amps)
  • 0.2A
  • Pitch
  • 0.012 0.30mm
  • Total Number of Contacts
  • 27
  • Reach Compliance Code
  • unknown
  • Current Rating
  • 200mA
  • Reference Standard
  • UL
  • Contact Finish
  • Gold
  • Reliability
  • COMMERCIAL
  • Number Of PCB Rows
  • 2
  • PCB Contact Pattern
  • STAGGERED
  • Contact Gender
  • FEMALE
  • Housing Color
  • Beige
  • Contact Style
  • CENTRONIC
  • Insulation Resistance
  • 50MOhm
  • Contact Pattern
  • STAGGERED
  • Mating Cycles
  • 10
  • Flat Flex Type
  • FPC
  • Connector/Contact Type
  • Contacts, Bottom
  • Cable End Type
  • Tabbed
  • Locking Feature
  • Flip Lock
  • Actuator Color
  • Brown

Download datasheets and manufacturer documentation for HIROSE FH36W-27S-0.3SHW(50).

Datasheets:

FH36W-27S-0.3SHW(50) Overview


The device's mounting type is Surface Mount, Right Angle.In order to package the product, a Tape & Reel (TR) case is used.It belongs to the FH36 Series of products.In addition, there are other features such as LOW PROFILE, to mention only a few.Its Zero Insertion Force (ZIF) feature renders it more powerful in many ways.The part is mounted by Surface Mount.The device runs in -55°C~85°C Operating Temperature.
