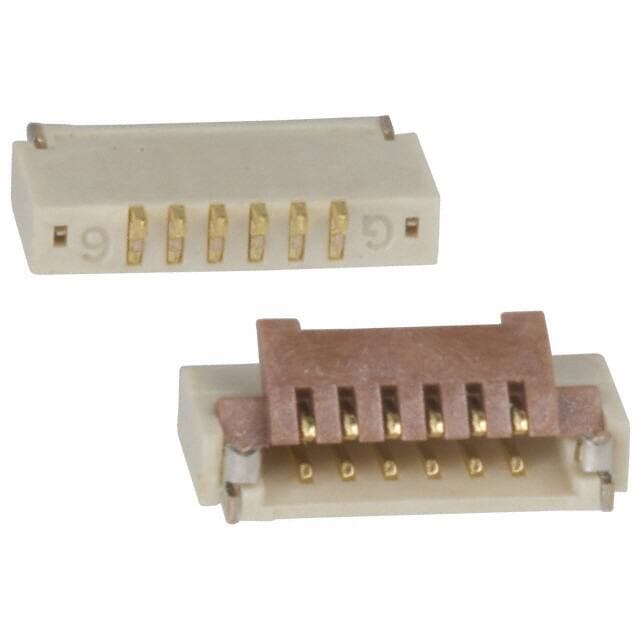

HIROSE FH19C-6S-0.5SH(10)
HIROSE FH19C-6S-0.5SH(10)

HIROSE FH19C-6S-0.5SH(10)

Manufacturer No:

FH19C-6S-0.5SH(10)

Manufacturer:

HIROSE

Package:

Description:

FH19C Series FFC, FPC Contacts, Bottom Tape & Reel (TR) 0.020 0.50mm Solder 6 Positions Surface Mount, Right Angle Gold -55°C~85°C 0.5A

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FH19C-6S-0.5SH(10) information

HIROSE FH19C-6S-0.5SH(10) technical specifications, attributes, parameters and parts with similar specifications to HIROSE FH19C-6S-0.5SH(10).

  • Type
  • Parameter
  • Factory Lead Time
  • 11 Weeks
  • Contact Material
  • Phosphor Bronze
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount, Right Angle
  • Housing Material
  • Liquid Crystal Polymer (LCP)
  • Actuator Material
  • Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
  • Operating Temperature
  • -55°C~85°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • FH19C
  • Feature
  • Solder Retention, Zero Insertion Force (ZIF)
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • ECCN Code
  • EAR99
  • Connector Type
  • FFC/FPC CONNECTOR
  • Number of Positions
  • 6
  • Number of Rows
  • 1
  • Voltage - Rated
  • 50V
  • Subcategory
  • Headers and Edge Type Connectors
  • Current Rating (Amps)
  • 0.5A
  • Pitch
  • 0.020 0.50mm
  • Total Number of Contacts
  • 6
  • Reach Compliance Code
  • unknown
  • Current Rating
  • 500mA
  • Contact Finish
  • Gold
  • Reliability
  • COMMERCIAL
  • Body Length or Diameter
  • 0.197 inch
  • Number Of PCB Rows
  • 1
  • PCB Contact Pattern
  • RECTANGULAR
  • Body Breadth
  • 0.035 inch
  • Housing Color
  • Beige
  • Body Depth
  • 0.118 inch
  • Contact Style
  • BELLOWED TYPE
  • Contact Resistance
  • 100mOhm
  • Insulation Resistance
  • 500MOhm
  • Wire/Cable Type
  • Flat Flex
  • Contact Pattern
  • RECTANGULAR
  • Mating Cycles
  • 20
  • Flat Flex Type
  • FFC, FPC
  • Connector/Contact Type
  • Contacts, Bottom
  • Cable End Type
  • Tapered
  • Locking Feature
  • Flip Lock
  • Actuator Color
  • Brown
  • Height Above Board
  • 0.035 0.88mm
  • FFC, FCB Thickness
  • 0.20mm
  • Material Flammability Rating
  • UL94 V-0
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for HIROSE FH19C-6S-0.5SH(10).

Datasheets:

FH19C-6S-0.5SH(10) Overview


A FFC/FPC CONNECTOR package is included with it.Surface Mount, Right Angle indicates that the device is mounted.An Tape & Reel (TR) case is utilized for packaging the product.The product is a part of the FH19C Series.In many ways, Solder Retention, Zero Insertion Force (ZIF) makes it more powerful.By Surface Mount, the part is mounted.Operating temperature is set to -55°C~85°C.

FH19C-6S-0.5SH(10) Features


FH19C series


FH19C-6S-0.5SH(10) Applications


There are a lot of Hirose Electric Co Ltd
FH19C-6S-0.5SH(10) FFC, FPC (Flat Flexible) Connectors applications.


  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
