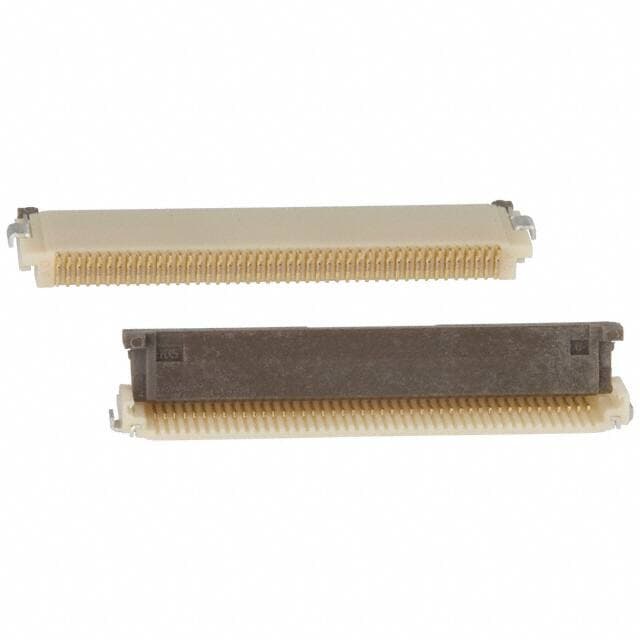

HIROSE FH12S-45S-0.5SH(55)
HIROSE FH12S-45S-0.5SH(55)

HIROSE FH12S-45S-0.5SH(55)

Manufacturer No:

FH12S-45S-0.5SH(55)

Manufacturer:

HIROSE

Package:

Description:

FH12 Series FFC, FPC Contacts, Bottom Tape & Reel (TR) 0.020 0.50mm Solder 45 Positions Surface Mount, Right Angle Gold -40°C~85°C 0.5A

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FH12S-45S-0.5SH(55) information

HIROSE FH12S-45S-0.5SH(55) technical specifications, attributes, parameters and parts with similar specifications to HIROSE FH12S-45S-0.5SH(55).

  • Type
  • Parameter
  • Factory Lead Time
  • 11 Weeks
  • Contact Material
  • Phosphor Bronze
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount, Right Angle
  • Housing Material
  • Polyamide (PA), Nylon
  • Actuator Material
  • Polyphenylene Sulfide (PPS)
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • FH12
  • JESD-609 Code
  • e4
  • Feature
  • Zero Insertion Force (ZIF)
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • FFC/FPC CONNECTOR
  • Number of Positions
  • 45
  • Number of Rows
  • 1
  • Gender
  • Receptacle
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Mixed Contacts
  • NO
  • Current Rating (Amps)
  • 0.5A
  • Pitch
  • 0.020 0.50mm
  • Total Number of Contacts
  • 45
  • Orientation
  • Right Angle
  • Depth
  • 5.6mm
  • Current Rating
  • 500mA
  • Contact Finish
  • Gold
  • Lead Pitch
  • 500?m
  • UL Flammability Code
  • 94V-0
  • Housing Color
  • Beige
  • Contact Resistance
  • 50mOhm
  • Max Voltage Rating (AC)
  • 50V
  • Max Current Rating
  • 400mA
  • Mating Cycles
  • 20
  • Flat Flex Type
  • FFC, FPC
  • Connector/Contact Type
  • Contacts, Bottom
  • Cable End Type
  • Straight
  • Locking Feature
  • Flip Lock
  • Actuator Color
  • Brown
  • Contact Location
  • Bottom
  • Length
  • 26.6mm
  • Height Above Board
  • 0.094 2.40mm
  • FFC, FCB Thickness
  • 0.30mm

Download datasheets and manufacturer documentation for HIROSE FH12S-45S-0.5SH(55).

Datasheets:

FH12S-45S-0.5SH(55) Overview


Packaging is in the form of FFC/FPC CONNECTOR.The mounting type of the device is Surface Mount, Right Angle.A Tape & Reel (TR) case is used to package the product.A product of the FH12 Series, it belongs to the range of products of that series.A number of features make the Zero Insertion Force (ZIF) feature more powerful.Surface Mount represents the mounting point for the part.-40°C~85°C Operating Temperature is the default operating temperature for the device.
