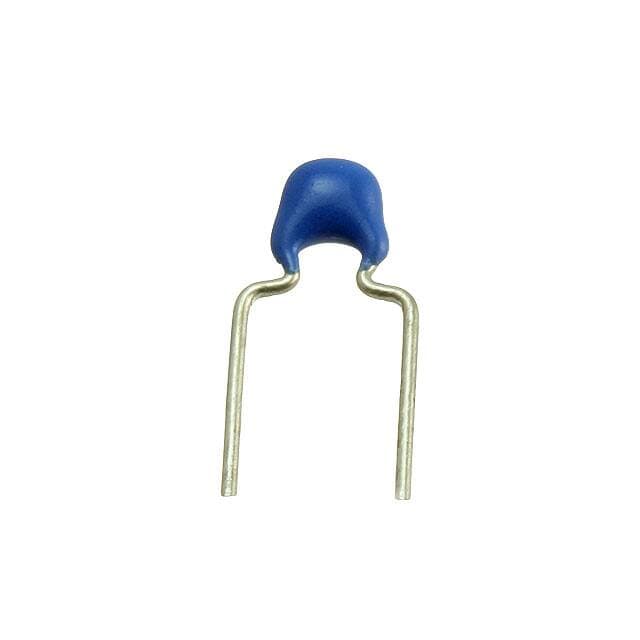

TDK FG28C0G1H121JNT00

Manufacturer No:

FG28C0G1H121JNT00

Manufacturer:

TDK

Package:

Radial

Description:

FG 120pF 50V Ceramic Capacitor ±5% C0G NP0 0.157Lx0.098W 4.00mmx2.50mm -55°C~125°C Through Hole Radial

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FG28C0G1H121JNT00 information

TDK FG28C0G1H121JNT00 technical specifications, attributes, parameters and parts with similar specifications to TDK FG28C0G1H121JNT00.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 2 months ago)

Factory Lead Time
24 Weeks

Mounting Type
Through Hole

Package / Case
Radial

Operating Temperature
-55°C~125°C

Packaging
Bulk

Series
FG

Published
2013

Size / Dimension
0.157Lx0.098W 4.00mmx2.50mm

Tolerance
±5%

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Temperature Coefficient
C0G NP0

Applications
General Purpose

Voltage - Rated
50V

Capacitance
120pF

Lead Spacing
0.197 5.00mm

Lead Style
Formed Leads - Kinked

Height Seated (Max)
0.217 5.50mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for TDK FG28C0G1H121JNT00.

Datasheets:

tdkcorporation-fg14x7r1h225krt06-datasheets-8909.pdf

tdkcorporation-fg28c0g1h121jnt00-datasheets-9851.pdf

FG28C0G1H121JNT00 Overview

A program's size/dimension is 0.157Lx0.098W 4.00mmx2.50mm for this device.Its coefficient is C0G NP0 and determines the change in resistance per degree of temperature for a substance.

FG28C0G1H121JNT00 Features

a size/dimension of 0.157Lx0.098W 4.00mmx2.50mm
with C0G NP0 being the highest temperature coefficient

FG28C0G1H121JNT00 Applications

There are a lot of TDK Corporation
FG28C0G1H121JNT00 applications of ceramic capacitors.

General electronic equipment
Mobile devices
Servers, PCs, tablets
Power supply circuit
