ONSEMI FDBS09H04A

Manufacturer No:

FDBS09H04A

Manufacturer:

ONSEMI

Package:

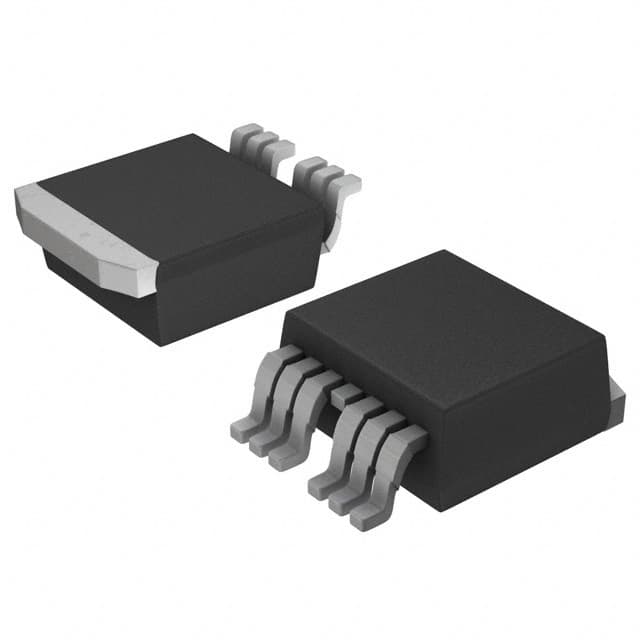

TO-263-7, D2Pak (6 Leads + Tab)

Description:

N-Channel PMIC 12V TO-263-7, D2Pak (6 Leads + Tab)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FDBS09H04A information

ONSEMI FDBS09H04A technical specifications, attributes, parameters and parts with similar specifications to ONSEMI FDBS09H04A.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
TO-263-7, D2Pak (6 Leads + Tab)

Operating Temperature
-40°C~150°C TJ

Packaging
Tape & Reel (TR)

JESD-609 Code
e3

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
7

ECCN Code
EAR99

Resistance
100mOhm

Terminal Finish
MATTE TIN

Terminal Position
SINGLE

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
245

Number of Functions
1

Supply Voltage
12V

Time@Peak Reflow Temperature-Max (s)
30

JESD-30 Code
R-PSSO-G7

Number of Outputs
1

Output Type
N-Channel

Max Output Current
12A

Supply Voltage-Max (Vsup)
38V

Supply Voltage-Min (Vsup)
5.5V

Interface
On/Off

Analog IC - Other Type
POWER SUPPLY SUPPORT CIRCUIT

Output Configuration
High Side

Voltage - Supply (Vcc/Vdd)
Not Required

Adjustable Threshold
NO

Input Type
Non-Inverting

Switch Type
General Purpose

Output Current per Channel
3A

Ratio - Input:Output
1:1

Voltage - Load
5.5V~28V

Fault Protection
Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO

Length
9.9mm

Width
9.2mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ONSEMI FDBS09H04A.

ReachStatement:

onsemiconductor-rmpa2550-reachstatement-3729.pdf

FDBS09H04A Overview

It is packaged in the manner of a Tape & Reel (TR).There is a TO-263-7, D2Pak (6 Leads + Tab) package that includes it.In this case, the LED driving board is mounted as Surface Mount.This switch is of type General Purpose.It is recommended to set the temperature to -40°C~150°C TJ in order to ensure reliable operation.There are 1 outputs available on this lighting driver.Operation is based on a supply voltage of Not Required.A maximum voltage of N-Channel volts is available from the output of this LED driver.It consists of 7 terminations in total.It consists of 1 functions.In order to meet the operation criteria, the maximum output current drops to 12A.The supply voltage of 12V is conducive to high efficiency.As a result, it is mounted in the manner of Surface Mount.In this LED driving board, there is 100mOhm resistance.The LED driver is configured with a maximum supply voltage of 38V (Vsup).In order for this lighting driver to operate normally, the supply voltage (Vsup) should remain above 5.5V.In this lighting driver, POWER SUPPLY SUPPORT CIRCUIT is the analog IC.In total, there are 1 channels available.

FDBS09H04A Features

Supplied from 12V
Resistance of 100mOhm
1 channels

FDBS09H04A Applications

There are a lot of ON Semiconductor
FDBS09H04A Power Switches ICs applications.

Portable/Handheld Devices
Wireless/Networking Cards
Low Voltage I/O System Power
Hard Disk Drives
Solid-State Drives
Hot Swap
HDD and SSD
Hot Swap
Wireless Modem Data Cards
PC Cards
