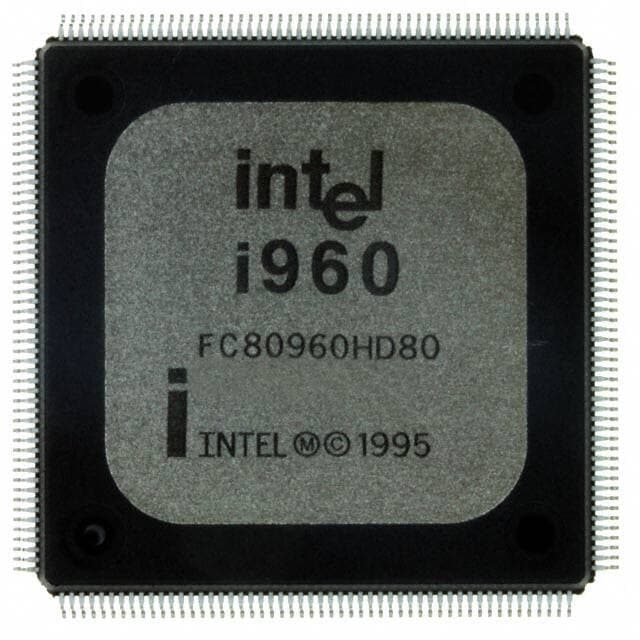

INTEL FC80960HD80SL2LZ
INTEL FC80960HD80SL2LZ

INTEL FC80960HD80SL2LZ

Manufacturer No:

FC80960HD80SL2LZ

Manufacturer:

INTEL

Package:

208-QFP

Description:

0.5mm 3.33.3/5V 32-bit Microprocessor i960 Series 80MHz 3.3V 208-QFP

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FC80960HD80SL2LZ information

INTEL FC80960HD80SL2LZ technical specifications, attributes, parameters and parts with similar specifications to INTEL FC80960HD80SL2LZ.

  • Type
  • Parameter
  • Mount
  • Surface Mount
  • Package / Case
  • 208-QFP
  • Operating Temperature
  • 0°C~85°C TC
  • Packaging
  • Tray
  • Series
  • i960
  • Published
  • 2002
  • JESD-609 Code
  • e0
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 5 (48 Hours)
  • Number of Terminations
  • 208
  • ECCN Code
  • 3A991.A.2
  • Terminal Finish
  • Tin/Lead (Sn/Pb)
  • HTS Code
  • 8542.31.00.01
  • Terminal Position
  • QUAD
  • Terminal Form
  • GULL WING
  • Supply Voltage
  • 3.3V
  • Terminal Pitch
  • 0.5mm
  • Frequency
  • 80MHz
  • Pin Count
  • 208
  • JESD-30 Code
  • S-PQFP-G208
  • Power Supplies
  • 3.33.3/5V
  • Voltage
  • 3.3V
  • RAM Size
  • 2kB
  • uPs/uCs/Peripheral ICs Type
  • MICROPROCESSOR, RISC
  • Access Time
  • 80 μs
  • Address Bus Width
  • 32
  • Boundary Scan
  • YES
  • Low Power Mode
  • YES
  • External Data Bus Width
  • 32
  • Format
  • FIXED POINT
  • Integrated Cache
  • YES
  • Number of Cores/Bus Width
  • 1 Core 32-Bit
  • Graphics Acceleration
  • No
  • RAM Controllers
  • DRAM
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for INTEL FC80960HD80SL2LZ.

Datasheets:

ConflictMineralStatement:

FC80960HD80SL2LZ Overview


The microprocessor is conveniently packaged in 208-QFP, making it easy to ship internationally. High reliability is provided by the advanced packaging method Tray. There are 1 Core 32-Bit cores/bus width on the CPU. Understand the operating temperature around 0°C~85°C TC. The i960 series contains it. DRAM RAM controllers are used by this CPU. This is a MICROPROCESSOR, RISC for the uPs/uCs/Peripheral ICs type. Total terminations are 208. In the case of a 3.3V voltage supply, the embedded microprocessor should be turned on and run. A 32-Bit architecture is used. CPUs operate at 80MHz Hz. The external data bus width of this CPU is 32. The CPU microprocessor body is injected with 208 pins. Many applications use this CPU with Surface Mount mounted. Datasheets specify that the embedded microprocessor requires 3.33.3/5V power supplies. There is 3.3V voltage at the CPU core. RAM (Random Access Memory) is designed to be 2kB.

FC80960HD80SL2LZ Features


32-Bit Structure
2kB RAM


FC80960HD80SL2LZ Applications


There are a lot of Intel
FC80960HD80SL2LZ Microprocessor applications.


  • Automatic control
  • Equipment control
  • Instrument control
  • Consumer electronics products
  • Toys
  • Robots
  • Radio
  • Television
  • Heater/Fan
  • Calculator
