ONSEMI FAN5902UCX
Manufacturer No:
FAN5902UCX
Manufacturer:
Package:

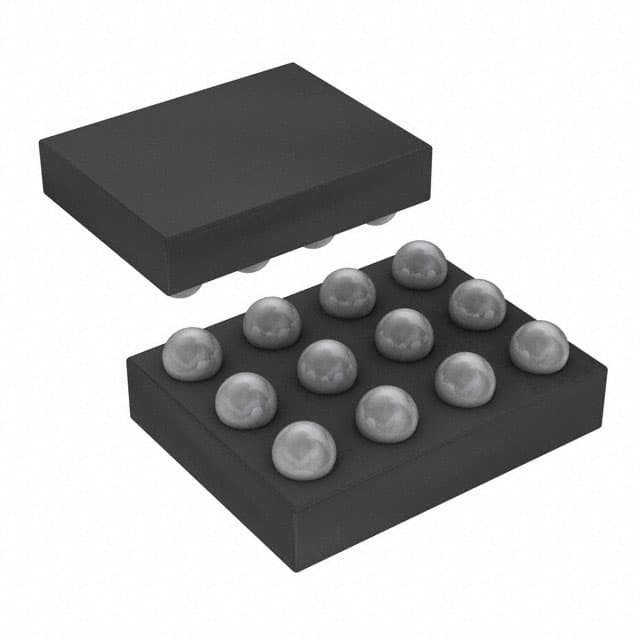

12-UFBGA, WLCSP
Description:
Converter, 3G RF Power Amplifier 0.4V~5.5V BOTTOM Specialized Voltage Regulator -40°C~85°C FAN5902 6MHz 12 Terminations 12-UFBGA, WLCSP
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
FAN5902UCX information
ONSEMI FAN5902UCX technical specifications, attributes, parameters and parts with similar specifications to ONSEMI FAN5902UCX.
- Type
- Parameter
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 12-UFBGA, WLCSP
- Number of Pins
- 12
- Weight
- 42mg
- Operating Temperature
- -40°C~85°C
- Packaging
- Tape & Reel (TR)
- Pbfree Code
- yes
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 12
- Applications
- Converter, 3G RF Power Amplifier
- Terminal Position
- BOTTOM
- Terminal Form
- BALL
- Number of Functions
- 1
- Terminal Pitch
- 0.5mm
- Base Part Number
- FAN5902
- Number of Outputs
- 1
- Efficiency
- 92 %
- Max Output Current
- 800mA
- Operating Supply Voltage
- 5.5V
- Analog IC - Other Type
- SWITCHING REGULATOR
- Voltage - Input
- 2.7V~5.5V
- Output Current
- 800mA
- Min Input Voltage
- 2.7V
- Control Mode
- CURRENT-MODE
- Max Input Voltage
- 5.5V
- Control Technique
- PULSE WIDTH MODULATION
- Switcher Configuration
- BUCK
- Switching Frequency
- 6MHz
- Height Seated (Max)
- 0.625mm
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for ONSEMI FAN5902UCX.
ReachStatement:
FAN5902UCX Overview
As a whole, it supports 1 outputs. For ease of transportation, alternator regulator is packaged in 12-UFBGA, WLCSP. The power regulator is ready for shipment in Tape & Reel (TR). There is a general voltage output of 0.4V~5.5V from this power supply regulator. Surface Mount Universal mount that facilitates easy adaptation. Applications targeting this shunt regulator include Converter, 3G RF Power Amplifier and others. In order to avoid malfunctions, the operating temperature should be set to -40°C~85°C. The external regulator is designed to operate at a voltage of 2.7V~5.5V. The voltage regulator contains 12terminals. The electronic part is widely regarded as a regulator of type SWITCHING REGULATOR. Search FAN5902 for more pin-to-pin solutions. In order to mount it on PCBs or other boards, it has a Surface Mount. The power regulators with 12 pins are available. For normal operation, a voltage of 5.5V is required. The electrical regulator should be displaying a current output of 800mA. It is required that the input voltage be higher than 2.7V. A frequency of 6MHzcan be selected for the voltage controller. At its maximum output, voltage regulator produces current 800mA.
