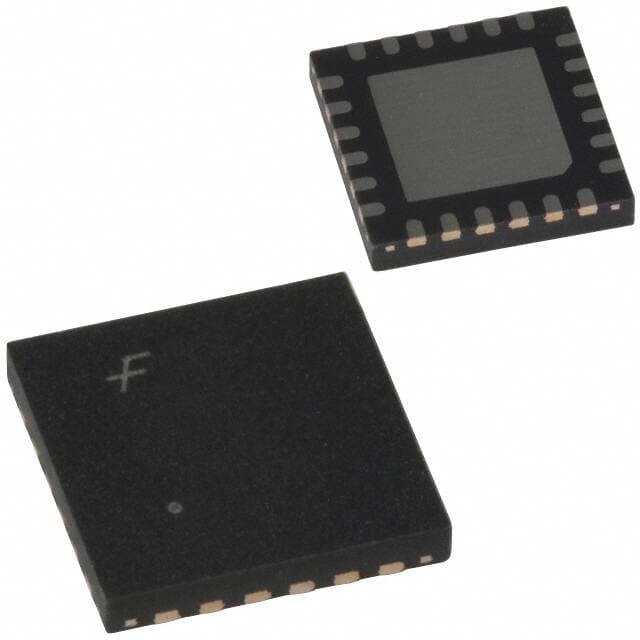

Rochester FAN5068MPX

Manufacturer No:

FAN5068MPX

Manufacturer:

Rochester

Package:

24-WQFN Exposed Pad

Description:

Controller, DDR 260 Cel QUAD Specialized Voltage Regulator -10°C~85°C 24 Pins 24 Terminations 24-WQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FAN5068MPX information

Rochester FAN5068MPX technical specifications, attributes, parameters and parts with similar specifications to Rochester FAN5068MPX.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
24-WQFN Exposed Pad

Surface Mount
YES

Operating Temperature
-10°C~85°C

Packaging
Tape & Reel (TR)

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
24

Terminal Finish
NICKEL PALLADIUM GOLD

Applications
Controller, DDR

Additional Feature
ALSO OPERATES AT 3.3 VOLT OUTPUT

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
24

Number of Outputs
4

Qualification Status
COMMERCIAL

Output Voltage
1.2V

Input Voltage-Nom
5V

Voltage - Input
4.5V~5.5V

Control Mode
CURRENT-MODE

Output Current-Max
1.5A

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
PUSH-PULL

Length
5mm

Height Seated (Max)
0.8mm

Width
5mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Rochester FAN5068MPX.

Datasheets:

rochesterelectronicsllc-fan5068mpx-datasheets-0029.pdf

FAN5068MPX Overview

There are a total of 4 outputs supported by the voltage regulator. The rectifier regulator is packaged in 24-WQFN Exposed Pad for ease of transportation. In Tape & Reel (TR) package, ready for shipping. Surface Mount Universal mount allows for easy adaptation. The shunt regulator is intended for use in applications such as Controller, DDR and others. It is recommended that the operating temperature be set to -10°C~85°C in order to prevent malfunctions. The input voltage for this external regulator is designed to be 4.5V~5.5V. It is possible to find 24terminals on the voltage regulator. This electronic part is highly regarded as a SWITCHING CONTROLLER regulator. The rectifier regulator's pinout begins with 24pins. Please refer to the followong extra aspects of this variable voltage regulator: ALSO OPERATES AT 3.3 VOLT OUTPUT. At maximum, it outputs current 1.5A.

FAN5068MPX Features

Widely used in Controller, DDR applications
SWITCHING CONTROLLER analog IC

FAN5068MPX Applications

There are a lot of Rochester Electronics, LLC
FAN5068MPX Specialized Voltage Regulators applications.

Notebook/Desktop/Server
Telecom/Datacom
GSM Base Station
LCD-TV/PDP-TV
Copier/Printer
Set-Top Box
DDR Vooo and V? Voltage Generation
PC Dual Power Supply
Server DDR Power
Desktop Computer
