ONSEMI FAN501MPX

Manufacturer No:

FAN501MPX

Manufacturer:

ONSEMI

Package:

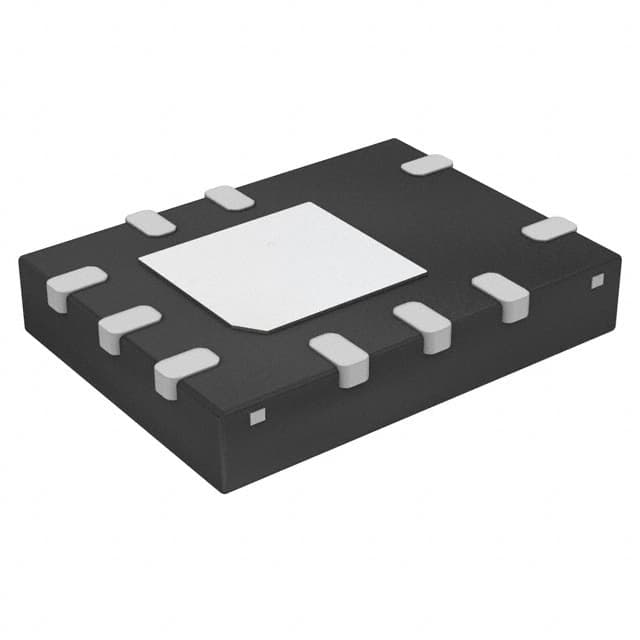

10-WQFN Exposed Pad

Description:

10 Terminations 5.8V~30V 10 Pin AC to DC power converter WSaver® Series 1 Outputs 85kHz~140kHz

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FAN501MPX information

ONSEMI FAN501MPX technical specifications, attributes, parameters and parts with similar specifications to ONSEMI FAN501MPX.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 4 days ago)

Factory Lead Time
6 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
10-WQFN Exposed Pad

Number of Pins
10

Weight
20.3152mg

Operating Temperature
-40°C~125°C TA

Packaging
Tape & Reel (TR)

Series
WSaver®

Published
2015

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
10

ECCN Code
EAR99

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Subcategory
Switching Regulator or Controllers

Frequency
140kHz

Number of Outputs
1

Output Voltage
1.5V

Operating Supply Voltage
15V

Analog IC - Other Type
SWITCHING CONTROLLER

Voltage - Supply (Vcc/Vdd)
5.8V~30V

Topology
Flyback

Control Mode
CURRENT-MODE

Frequency - Switching
85kHz~140kHz

Rise Time
180ns

Fall Time (Typ)
70 ns

Nominal Input Voltage
6V

Internal Switch(s)
No

Fault Protection
Current Limiting, Over Temperature, Over Voltage

Max Duty Cycle
77 %

Isolation
Non-Isolated

Duty Cycle
68.5%

Output Isolation
Isolated

Voltage - Start Up
17.5V

Height
725?m

Length
4mm

Width
3mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ONSEMI FAN501MPX.

PCN Design/Specification:

onsemiconductor-lvkit-pcndesignspecification-5808.pdf

PCN Packaging:

onsemiconductor-lvkit-pcnpackaging-5809.pdf

FAN501MPX Overview

In the package 10-WQFN Exposed Pad , the ac to dc converter is embedded.The AC/DC power converter type is Tape & Reel (TR) .It is mounted in the way of Surface Mount .For the ac dc converter to perform at its best, it should be operated at a temperature of -40°C~125°C TA °C.Analog ICs of type SWITCHING CONTROLLER are used in this AC DC converter.In this AC to DC transformer, the switching frequency is 85kHz~140kHz .Vcc/Vdd can be used within the range of 5.8V~30V supply voltage.As a result, it has had 10 terminations.A ac/dc converter with 10 pins is available.It are possible to mount thare ac dc converters by Surface Mount .It belongs to the family of WSaver® manufacturers.There are 1 outputs to be processed.AC to DC converter is included in Switching Regulator or Controllers .There is 1.5V output voltage from this AC/DC converter.High efficiency can be achieved when AC to DC converters frequency is set to 140kHz .During a 15V -voltage supply, the interface IC conducts.

FAN501MPX Features

Packaged with 10-WQFN Exposed Pad
Switching Frequency at 85kHz~140kHz
With 10 pins
Operating Supply Voltage at the range of 15V

FAN501MPX Applications

There are a lot of ON Semiconductor
FAN501MPX AC DC Converters applications.

Adaptors for Portable Media Player
Adaptors for DSCs
Set-top boxes
DVD players
Records
Linear Adapter Replacements
Chargers for cell/cordless phones
PDAs
MP3
Portable audio
