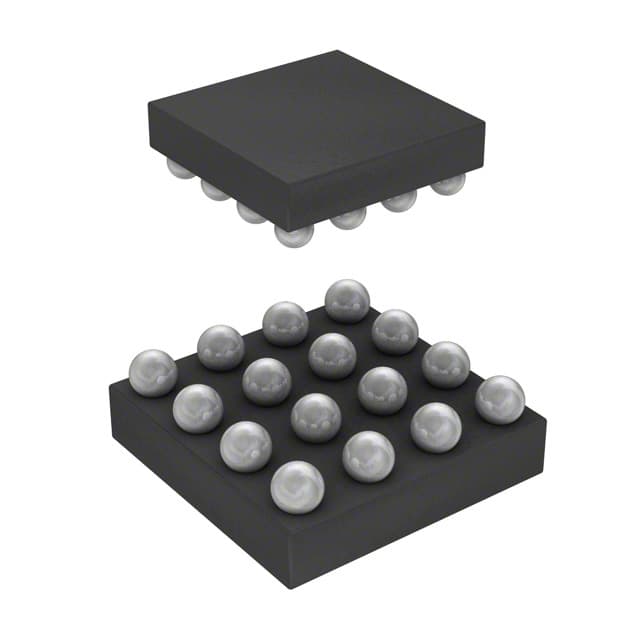

ONSEMI FAN48632BUC33X

Manufacturer No:

FAN48632BUC33X

Manufacturer:

ONSEMI

Package:

16-UFBGA, WLCSP

Description:

Converter, GSM PA 3.3V 3.49V BOTTOM Specialized Voltage Regulator -40°C~85°C FAN48632 2.5MHz 16 Terminations 16-UFBGA, WLCSP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FAN48632BUC33X information

ONSEMI FAN48632BUC33X technical specifications, attributes, parameters and parts with similar specifications to ONSEMI FAN48632BUC33X.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 1 week ago)

Factory Lead Time
19 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
16-UFBGA, WLCSP

Number of Pins
16

Weight
58.66667mg

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Series
TinyBoost®

Published
2016

JESD-609 Code
e1

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

ECCN Code
EAR99

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Applications
Converter, GSM PA

Subcategory
Switching Regulator or Controllers

Terminal Position
BOTTOM

Terminal Form
BALL

Number of Functions
1

Supply Voltage
3V

Base Part Number
FAN48632

Number of Outputs
1

Efficiency
96 %

Output Type
Fixed

Max Output Current
1.5A

Operating Supply Voltage
5.5V

Analog IC - Other Type
ANALOG CIRCUIT

Voltage - Input
2.35V~5.5V

Output Current
2A

Max Output Voltage
3.49V

Voltage - Output
3.3V 3.49V

Topology
Boost

Min Input Voltage
2.35V

Control Mode
CURRENT-MODE

Max Input Voltage
5.5V

Switching Frequency
2.5MHz

Height
378?m

Length
1.78mm

Width
1.78mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ONSEMI FAN48632BUC33X.

FAN48632BUC33X Overview

The device supports a total of 1 outputs. It is packaged in 16-UFBGA, WLCSP for convenient transportation. Ready for shipping in Tape & Reel (TR) package. There is a general voltage output of 3.3V 3.49V from this regulator. Easy adaptability thanks to Surface Mount universal mount. The device is targeted at Converter, GSM PA and other applications. It is recommended that the operating temperature be set to -40°C~85°C to prevent malfunctions. The input voltage for this regulator is designed to be 2.35V~5.5V. There are 16terminals on the part. It has received a great deal of support as a ANALOG CIRCUITregulator. Search FAN48632for more pin-to-pin solutions. Surface Mountis there for mounting on a PCB or another board. In this device, there are 16 pins. The device and other Switching Regulator or Controllersare crucial to the industry. The normal operation of the system requires 5.5V operating voltage. The device should be displaying a current output of 2A. There must be an input voltage higher than 2.35Vin order to operate this regulator. As the part is supplied with a 3V voltage, it is capable of completing a variety of demanding tasks. The regulator can switch at a frequency of 2.5MHz. TinyBoost? corresponds to the device's series. At its maximum output, it produces current 1.5A.

FAN48632BUC33X Features

Widely used in Converter, GSM PA applications
ANALOG CIRCUIT analog IC
Supply voltage: 5.5V

FAN48632BUC33X Applications

There are a lot of ON Semiconductor FAN48632BUC33X Specialized Voltage Regulators applications.

Printers
Regulated Negative Power Supplies
Portable GPS
Notebooks
Low-Voltage
Graphics Processor Core Supplies
Desktop PC's
Notebook Computer System and I/O Bus
Desktop CPU Local DC-DC Converters
Cellular or Cordless Phones
