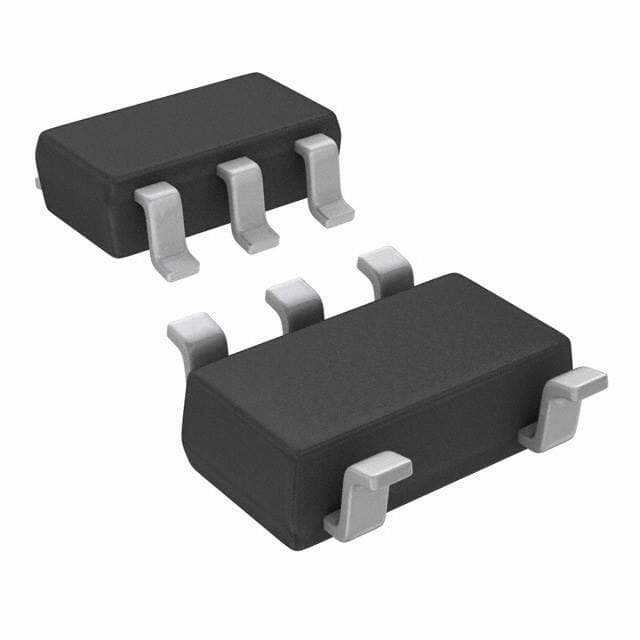

ONSEMI FAN2500S25X

Manufacturer No:

FAN2500S25X

Manufacturer:

ONSEMI

Package:

SOT-23-5

Description:

Fixed PMIC SOT-23-5

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FAN2500S25X information

ONSEMI FAN2500S25X technical specifications, attributes, parameters and parts with similar specifications to ONSEMI FAN2500S25X.

Type
Parameter

Lifecycle Status
LAST SHIPMENTS (Last Updated: 15 hours ago)

Mount
Surface Mount

Package / Case
SOT-23-5

Number of Pins
5

Weight
30mg

Packaging
Tape & Reel (TR)

Published
2008

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
5

ECCN Code
EAR99

Terminal Finish
Tin (Sn)

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Subcategory
Other Regulators

Packing Method
TAPE AND REEL

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Number of Functions
1

Number of Outputs
1

Output Voltage
2.5V

Max Output Current
100mA

Polarity
Positive

Output Current
100mA

Quiescent Current
1?A

Accuracy
2 %

Output Voltage 1
2.5V

Min Input Voltage
2.7V

Max Input Voltage
6.5V

Dropout Voltage
100mV

Dropout Voltage1-Nom
0.1V

Min Output Voltage
2.5V

Voltage Tolerance-Max
2%

Output Voltage Accuracy
2 %

Height
1.3mm

Length
3mm

Width
1.7mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ONSEMI FAN2500S25X.

FAN2500S25X Overview

An Tape & Reel (TR) case is included with the delivery. There is a SOT-23-5 case with the integrated voltage regulator. There are 5 terminations on the battery regulator IC chip and each of them has its own function. In terms of output type, Fixed is what the Regulator IC produces. In order to ensure prompt, adequate, and prompt performance, this regulator has 1 outputs in total. In terms of its dropout voltage, it is 10 volts. There are 5 pins on the chip. In this instance, we are dealing with a typical Other Regulators-shaped component. In order to pack the regulator, the method is TAPE AND REEL. In order to meet the operating requirements of the regulator, its maximal output current reaches 100mA. It operates in the 1?A Quiescent Current state. Utilize the regulator IC when the temperature is below 125°C. It is recommended that the chip be operated at a temperature no lower than -40°C operating temperature.

FAN2500S25X Features

100mV dropout voltage
Other Regulators subtageroy
TAPE AND REEL method of packing
The maximum operating temperature of -40°C

FAN2500S25X Applications

There are a lot of ON Semiconductor
FAN2500S25X Linear Voltage Regulators applications.

Camera
Video equipment
CPU power supply
Switching regulator
Multiple-power supply system
Digital audio player
Digital TV
Smartcard
Industrial equipment
DVD and CD-ROM drive
