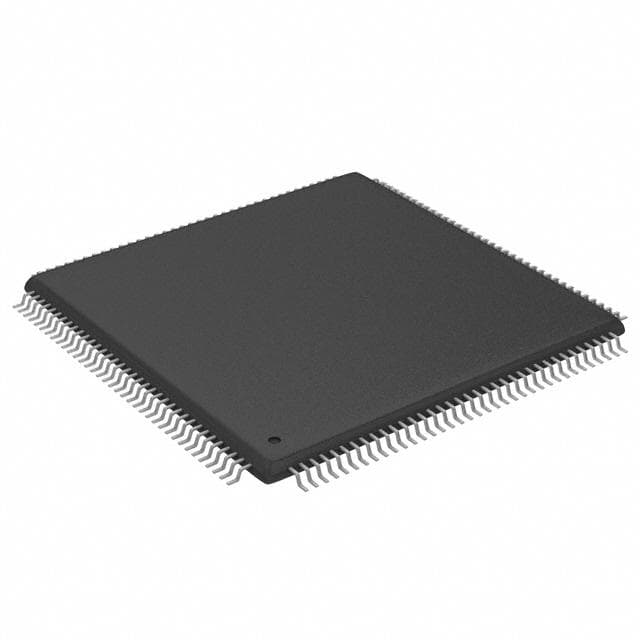

INTEL FA80386EXTC33

Manufacturer No:

FA80386EXTC33

Manufacturer:

INTEL

Package:

TQFP

Description:

0.5mm 5V 32-bit Microprocessor 144-Pin 33MHz 5V TQFP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FA80386EXTC33 information

INTEL FA80386EXTC33 technical specifications, attributes, parameters and parts with similar specifications to INTEL FA80386EXTC33.

Type
Parameter

Mount
Surface Mount

Package / Case
TQFP

Number of Pins
144

Packaging
Bulk

Published
1998

JESD-609 Code
e0

Pbfree Code
no

Part Status
Discontinued

Number of Terminations
144

ECCN Code
3A001.A.3

Terminal Finish
Tin/Lead (Sn/Pb)

HTS Code
8542.31.00.01

Subcategory
Microprocessors

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Supply Voltage
5V

Terminal Pitch
0.5mm

Frequency
33MHz

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
144

Qualification Status
Not Qualified

Operating Temperature (Max)
118°C

Operating Supply Voltage
5V

Power Supplies
5V

Temperature Grade
INDUSTRIAL

Voltage
5V

Max Supply Voltage
5.5V

Min Supply Voltage
4.5V

uPs/uCs/Peripheral ICs Type
MICROPROCESSOR

Supply Current-Max
320mA

Bit Size
32

Access Time
33 μs

Address Bus Width
26

Boundary Scan
YES

Low Power Mode
YES

External Data Bus Width
16

Format
FIXED POINT

Integrated Cache
NO

RAM (words)
0

Number of Serial I/Os
3

Number of External Interrupts
12

Number of DMA Channels
2

Length
20mm

Height Seated (Max)
1.7mm

Width
20mm

Download datasheets and manufacturer documentation for INTEL FA80386EXTC33.

ConflictMineralStatement:

intel-cnla6000pk5-conflictmineralstatement-0045.pdf

FA80386EXTC33 Overview

With a packing size of TQFP, this embedded microprocessor is ideal for international shipping. High reliability is achieved with advanced packaging method Bulk. I would rate this as a MICROPROCESSOR for the uPs/uCs/Peripheral ICs type. As a whole, there are 144 terminations. A 5V voltage supply should be used to turn on and run the cpu microprocessor. There is a 32-Bit architecture in it. At 33MHz, the CPU operates. For information about 144 pins, please refer to the datasheet. As a typical Microprocessors, this cpu microprocessor has Microprocessors display. With a 16 external data bus width, this CPU has a wide data bus. There are 144 pins injected into the embedded microprocessor body. With the Surface Mount mounted, this CPU is widely used in a wide range of applications. As of 5V, the CPU microprocessor is capable of functioning. The micro processor requires 5V power supplies according to the datasheets. A CPU core voltage of 5V is present. Voltage can't exceed 320mA to the CPU. Microprocessors should never be supplied with voltages above 5.5V in normalcircumstances. Micro processors should be supplied with 4.5V as their lowest voltage. There should be a value over -40°C in the operating environment. For hardware interrupts, there are 12 external interrupt terminations. A serial communication interface is available for data communication between peripherals on 3. The DMA (Direct Memory Access) process is programmed using 2 channels.

FA80386EXTC33 Features

32-Bit Structure

FA80386EXTC33 Applications

There are a lot of Intel
FA80386EXTC33 Microprocessor applications.

Radio
Television
Heater/Fan
Calculator
Kindle
Christmas lights
3D printers
Washing machine
Microwave ovens
Home appliances

User Guide
