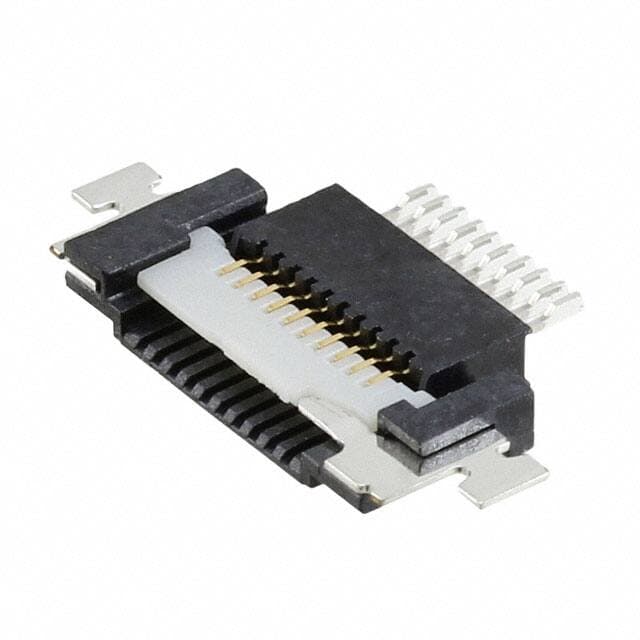

JAE FA5B008HP1
JAE FA5B008HP1

JAE FA5B008HP1

Manufacturer No:

FA5B008HP1

Manufacturer:

JAE

Package:

Description:

FA5 Series FPC Contacts, Bottom Bulk 0.020 0.50mm Solder 8 Positions Board Edge, Cutout Gold -40°C~85°C 0.8A per Contact

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FA5B008HP1 information

JAE FA5B008HP1 technical specifications, attributes, parameters and parts with similar specifications to JAE FA5B008HP1.

  • Type
  • Parameter
  • Factory Lead Time
  • 14 Weeks
  • Contact Material
  • Copper Alloy
  • Mount
  • Edge
  • Mounting Type
  • Board Edge, Cutout
  • Housing Material
  • Liquid Crystal Polymer (LCP), Glass Filled
  • Actuator Material
  • Polyamide (PA), Nylon, Glass Filled
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Bulk
  • Series
  • FA5
  • Published
  • 2004
  • Feature
  • Solder Retention, Zero Insertion Force (ZIF)
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Number of Positions
  • 8
  • Voltage - Rated
  • 50V
  • Current Rating (Amps)
  • 0.8A per Contact
  • Pitch
  • 0.020 0.50mm
  • Current Rating
  • 800mA
  • Contact Finish
  • Gold
  • Housing Color
  • Black
  • Mating Cycles
  • 20
  • Flat Flex Type
  • FPC
  • Connector/Contact Type
  • Contacts, Bottom
  • Locking Feature
  • Flip Lock
  • Actuator Color
  • White
  • FFC, FCB Thickness
  • 0.30mm
  • Material Flammability Rating
  • UL94 V-0
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-0

Download datasheets and manufacturer documentation for JAE FA5B008HP1.

Datasheets:

FA5B008HP1 Overview


Board Edge, Cutout is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the FA5 Series, it can be found in this category.With its Solder Retention, Zero Insertion Force (ZIF) feature, it is more powerful in many ways.In this case, Edge mounts the part.The device is operating at -40°C~85°C Operating Temperature.
