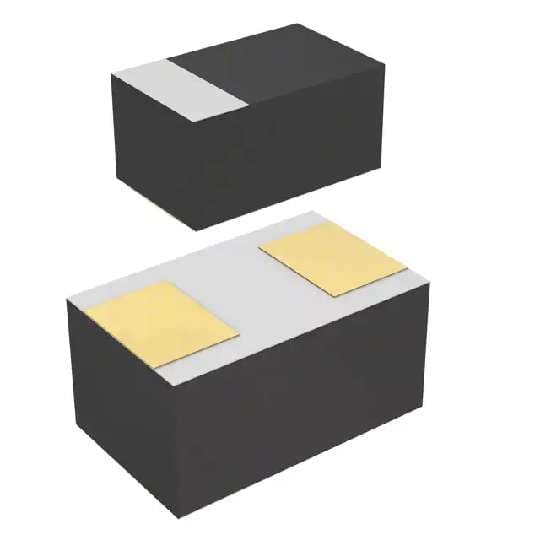

NICHICON F380J226MSA
Manufacturer No:
F380J226MSA
Manufacturer:
Package:
0805 (2012 Metric)
Description:
Molded F38 Frameless? 22?F Capacitor 1 (Unlimited) ±20% 0805 (2012 Metric) Surface Mount General Purpose -55°C~105°C Tape & Reel (TR)
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
F380J226MSA information
NICHICON F380J226MSA technical specifications, attributes, parameters and parts with similar specifications to NICHICON F380J226MSA.
- Type
- Parameter
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 0805 (2012 Metric)
- Weight
- 5.499807mg
- Operating Temperature
- -55°C~105°C
- Packaging
- Tape & Reel (TR)
- Series
- F38 Frameless?
- Published
- 2008
- Size / Dimension
- 0.079Lx0.049W 2.00mmx1.25mm
- Tolerance
- ±20%
- Feature
- General Purpose
- Pbfree Code
- yes
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 2
- Termination
- SMD/SMT
- ECCN Code
- EAR99
- Type
- Molded
- HTS Code
- 8532.22.00
- Capacitance
- 22?F
- Voltage - Rated DC
- 6.3V
- Packing Method
- TR, 7 INCH
- Depth
- 1.25mm
- Case Code (Metric)
- 2012
- ESR (Equivalent Series Resistance)
- 200mOhm @ 100kHz
- Polarity
- POLARIZED
- Leakage Current
- 13.9?A
- Ripple Current
- 450mA
- Life (Hours)
- 1000 hours
- Tan Delta
- 0.06
- Dissipation Factor
- 10 %
- Manufacturer Size Code
- S
- Height
- 800?m
- Height Seated (Max)
- 0.035 0.90mm
- REACH SVHC
- No SVHC
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for NICHICON F380J226MSA.
Datasheets:
F380J226MSA Overview
Measured ripple current for the part is 450mA.In order to maintain high efficiency, the ESR (Equivalent Series Resistance) should remain at 200mOhm @ 100kHz.The leakage current of 13.9?A can be supported.22?F is the capacitance of the device.As a result, the voltage - rated DC of 6.3V is used to ensure its reliability.Powered by a voltage of -55°C~105°C, it is powered by AC power.The maximum height seated of 0.035 0.90mm°C enables stable operation.
F380J226MSA Features
450mA ripple current
a 200mOhm @ 100kHz ESR (Equivalent Series Resistance)
a leakage current of 13.9?A
with a capacitance of 22?F
the voltage - rated DC of 6.3V
an AC voltage of -55°C~105°C
F380J226MSA Applications
There are a lot of Nichicon
F380J226MSA applications of tantalum polymer capacitors.
- Smart phone
- Tablets
- Notebook
- LCD TV
- Power supplies
