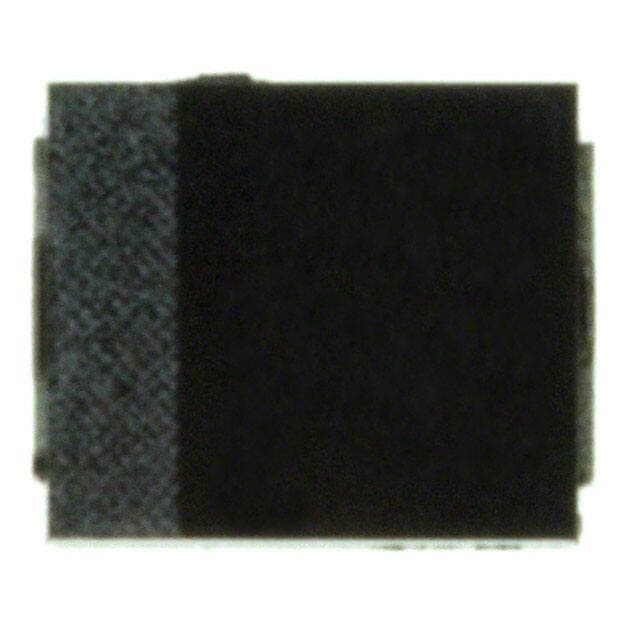

NICHICON F320E227MBA
Manufacturer No:
F320E227MBA
Manufacturer:
Package:
1411 (3528 Metric)
Description:
Molded F32 220?F Capacitor 2.5V 1 (Unlimited) ±20% 1411 (3528 Metric) Surface Mount General Purpose -55°C~105°C Tape & Reel (TR)
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
F320E227MBA information
NICHICON F320E227MBA technical specifications, attributes, parameters and parts with similar specifications to NICHICON F320E227MBA.
- Type
- Parameter
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 1411 (3528 Metric)
- Terminal Shape
- WRAPAROUND
- Dielectric Material
- TANTALUM (SOLID POLYMER)
- Operating Temperature
- -55°C~105°C
- Packaging
- Tape & Reel (TR)
- Series
- F32
- Published
- 2008
- Size / Dimension
- 0.138Lx0.110W 3.50mmx2.80mm
- Tolerance
- ±20%
- JESD-609 Code
- e3
- Feature
- General Purpose
- Pbfree Code
- yes
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 2
- ECCN Code
- EAR99
- Type
- Molded
- Terminal Finish
- Tin (Sn)
- Voltage - Rated
- 2.5V
- HTS Code
- 8532.22.00
- Capacitance
- 220?F
- Packing Method
- TR, 7 INCH
- Case Code (Metric)
- 3528
- Case Code (Imperial)
- 1411
- ESR (Equivalent Series Resistance)
- 45mOhm @ 100kHz
- Polarity
- POLARIZED
- Rated (DC) Voltage (URdc)
- 2.5V
- Leakage Current
- 0.055mA
- Ripple Current
- 1374mA
- Manufacturer Size Code
- B
- Height Seated (Max)
- 0.083 2.10mm
- Length
- 3.5mm
- Width
- 2.8mm
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for NICHICON F320E227MBA.
Datasheets:
F320E227MBA Overview
In this part, the ripple current is 1374mA.For high efficiency, you should maintain the 45mOhm @ 100kHz ESR (Equivalent Series Resistance).There is 0.055mA leakage current in this capacitor.Capacitance 220?F governs its operation.In order for 2.5V to perform its function properly, a rated (DC) voltage (Urdu) must be provided.The voltage is -55°C~105°C - Rated AC power.2.5V voltage allows for high efficiency.Operating at [0.083 2.10mm°C]°C seated height makes it stable.
F320E227MBA Features
1374mA ripple current
a 45mOhm @ 100kHz ESR (Equivalent Series Resistance)
a leakage current of 0.055mA
with a capacitance of 220?F
a rated (DC) voltage (Urdu) of 2.5V
an AC voltage of -55°C~105°C
the voltage rating of 2.5V
F320E227MBA Applications
There are a lot of Nichicon
F320E227MBA applications of tantalum polymer capacitors.
- Smart phone
- Tablets
- Notebook
- LCD TV
- Power supplies
