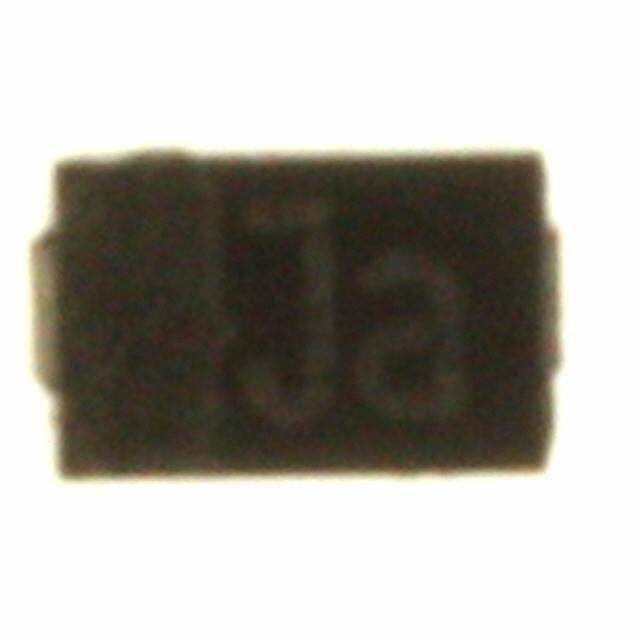

NICHICON F310J106MPA

Manufacturer No:

F310J106MPA

Manufacturer:

NICHICON

Package:

0805 (2012 Metric)

Description:

Molded F31 10?F Capacitor 1 (Unlimited) ±20% 0805 (2012 Metric) Surface Mount General Purpose -55°C~105°C Tape & Reel (TR)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

F310J106MPA information

NICHICON F310J106MPA technical specifications, attributes, parameters and parts with similar specifications to NICHICON F310J106MPA.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
0805 (2012 Metric)

Number of Pins
2

Dielectric Material
Tantalum

Operating Temperature
-55°C~105°C

Packaging
Tape & Reel (TR)

Series
F31

Published
2008

Size / Dimension
0.079Lx0.049W 2.00mmx1.25mm

Tolerance
±20%

JESD-609 Code
e3

Feature
General Purpose

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

ECCN Code
EAR99

Type
Molded

Terminal Finish
Tin (Sn)

Capacitance
10?F

Voltage - Rated DC
6.3V

Packing Method
TR, 7 INCH

Case Code (Metric)
2012

ESR (Equivalent Series Resistance)
200mOhm @ 100kHz

Leakage Current
0.0063mA

Ripple Current
354mA

Tan Delta
0.06

Manufacturer Size Code
P

Height Seated (Max)
0.047 1.20mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON F310J106MPA.

Datasheets:

nichicon-f310e226mpa-datasheets-5171.pdf

F310J106MPA Overview

The part's ripple current is measured to be 354mA.The ESR (Equivalent Series Resistance) should be maintained at 200mOhm @ 100kHz for high efficiency.It supports the leakage current of 0.0063mA.It operates with the capacitance of 10?F.It operates with the voltage - rated DC of 6.3V to ensure its reliability.It is capable of operating Temperature of -55°C~105°C.Its maximum height seated of 0.047 1.20mm°C enables stable operation.

F310J106MPA Features

354mA ripple current
a 200mOhm @ 100kHz ESR (Equivalent Series Resistance)
a leakage current of 0.0063mA
with a capacitance of 10?F
the voltage - rated DC of 6.3V
an AC voltage of -55°C~105°C

F310J106MPA Applications

There are a lot of Nichicon
F310J106MPA applications of tantalum polymer capacitors.

Smart phone
Tablets
Notebook
LCD TV
Power supplies
