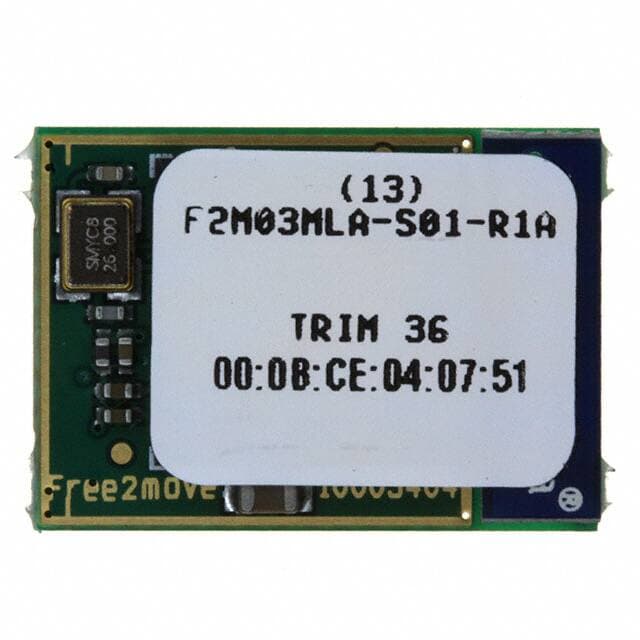

Free2Move F2M03MLA-S01-R1A

Manufacturer No:

F2M03MLA-S01-R1A

Manufacturer:

Free2Move

Package:

Module

Description:

2.4GHz Bluetooth -40°C~85°C 3.1V~3.6V I2S, PIO, SPI, UART Tape & Reel (TR) Integrated, Chip 1.5Mbps 8dBm Bluetooth v2.0 + EDR, Class 1, 2 and 3 -86dBm Module

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

F2M03MLA-S01-R1A information

Free2Move F2M03MLA-S01-R1A technical specifications, attributes, parameters and parts with similar specifications to Free2Move F2M03MLA-S01-R1A.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
Module

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Published
2012

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Voltage - Supply
3.1V~3.6V

Frequency
2.4GHz

Interface
SPI, UART

Data Rate
1.5Mbps

Protocol
Bluetooth v2.0 + EDR, Class 1, 2 and 3

Power - Output
8dBm

RF Family/Standard
Bluetooth

Antenna Type
Integrated, Chip

Sensitivity
-86dBm

Serial Interfaces
I2S, PIO, SPI, UART

Current - Transmitting
75mA

Sensitivity (dBm)
-86 dBm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Free2Move F2M03MLA-S01-R1A.

F2M03MLA-S01-R1A Overview

We are using Surface Mount as the RF Transceiver' mounting method.A Tape & Reel (TR) package is used in this RF Transceiver module to optimize performance.Keeping Transceiver's operating temperature at -40°C~85°C is essential when operating.3.1V~3.6V voltage is available from the RF Transceiver.2.4GHz Hz is the frequency at which the Transceiver operates.There are many applications that use the Transceiver with Surface Mount mounted.

F2M03MLA-S01-R1A Features

Surface Mount
Tape & Reel (TR) package
3.1V~3.6V volts

F2M03MLA-S01-R1A Applications

There are a lot of Free2Move
F2M03MLA-S01-R1A RF Transceiver Modules applications.

Secure Payment
Home and Security
Health and Fitness
Industrial and Data Logger
LED Lighting
Utility and Smart Energy
Thermostats
Smart Meters
HVAC
Consumer Electronics
