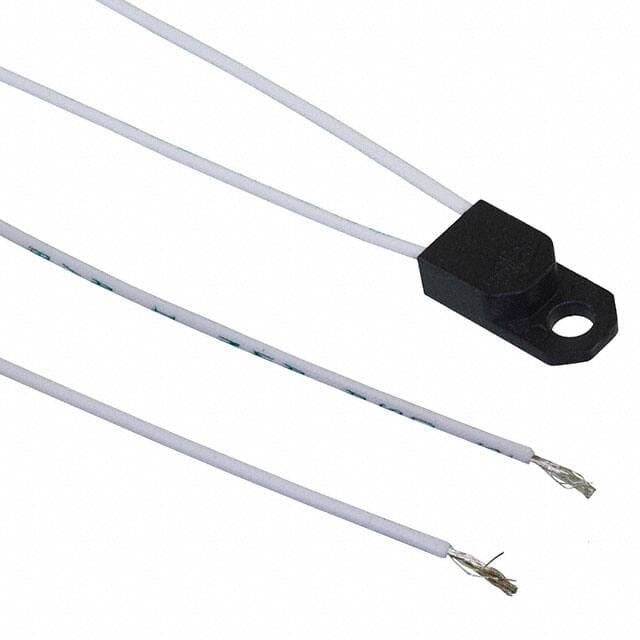

Cantherm F20A15005DCFB06E

Manufacturer No:

F20A15005DCFB06E

Manufacturer:

Cantherm

Package:

Housed Sensor

Description:

F20 Switching Cycles: 7K 1.6A 250V - AC Wire Leads - 4 (101.6mm) Through Hole SPST-NC 248°F 120°C - Reset 302°F 150°C - Switching ±9°F ±5°C

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

F20A15005DCFB06E information

Cantherm F20A15005DCFB06E technical specifications, attributes, parameters and parts with similar specifications to Cantherm F20A15005DCFB06E.

Type
Parameter

Factory Lead Time
5 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Housed Sensor

Series
F20

Published
2009

Tolerance
±9°F ±5°C

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Wire Leads

Type
Mechanical

Termination Style
Wire Leads - 4 (101.6mm)

Circuit
SPST-NC

Throw Configuration
SPST

Switching Cycles
7K

Current Rating - AC
1.6A 250V

Switching Temperature
302°F 150°C

Reset Temperature
248°F 120°C

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Cantherm F20A15005DCFB06E.

Datasheets:

cantherm-f20b090053600060-datasheets-6670.pdf

F20A15005DCFB06E Overview

Mechanic temperature sensors are put into Housed Sensor packages to protect them from damage.

F20A15005DCFB06E Features

Switching Temperature: 302°F 150°C
F20 Series
Current Rating - AC: 1.6A 250V
Housed Sensor Package / Case
Termination: Wire Leads
Mount: Through Hole

F20A15005DCFB06E Applications

There are a lot of Cantherm
F20A15005DCFB06E Mechanical Temperature Sensors applications.

Amplifiers
Motors
HDDs
FDDs
General appliances
Temperature detection
Overheat monitoring of electric appliances
Heat-retention heater control for rice cookers
Defrost for air conditioners and vending machines
Roll heater temperature control for copying machines
