Manufacturer No:

EZ80F91NA050EG

Manufacturer:

LITTELFUSE

Package:

144-LBGA

Description:

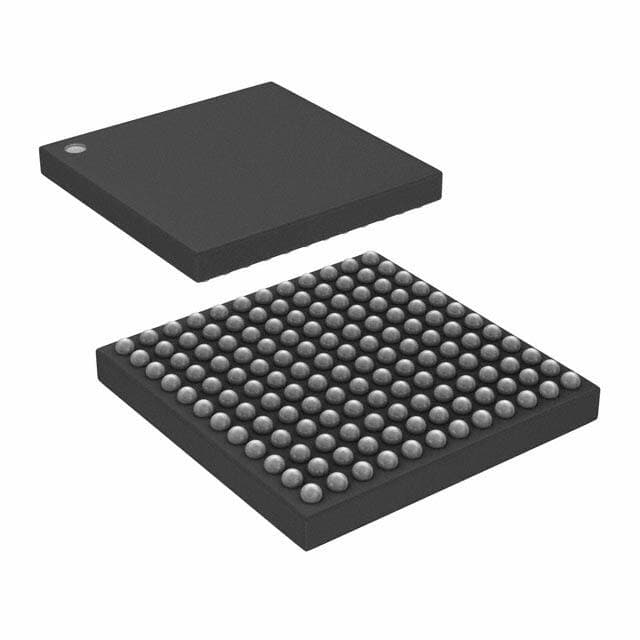

256KB 256K x 8 FLASH eZ80 8-Bit Microcontroller eZ80® Acclaim!® Series EZ80F91 144 Pin 50MHz 3.3V 144-LBGA

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EZ80F91NA050EG information

LITTELFUSE EZ80F91NA050EG technical specifications, attributes, parameters and parts with similar specifications to LITTELFUSE EZ80F91NA050EG.

  • Type
  • Parameter
  • Factory Lead Time
  • 13 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 144-LBGA
  • Surface Mount
  • YES
  • Number of Pins
  • 144
  • Operating Temperature
  • -40°C~105°C TA
  • Packaging
  • Tray
  • Series
  • eZ80® Acclaim!®
  • Published
  • 2008
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 144
  • ECCN Code
  • 3A001.A.3
  • Terminal Finish
  • MATTE TIN
  • Subcategory
  • Microcontrollers
  • Max Power Dissipation
  • 830mW
  • Technology
  • CMOS
  • Terminal Position
  • BOTTOM
  • Terminal Form
  • BALL
  • Peak Reflow Temperature (Cel)
  • 260
  • Supply Voltage
  • 3.3V
  • Terminal Pitch
  • 1mm
  • Time@Peak Reflow Temperature-Max (s)
  • 40
  • Base Part Number
  • EZ80F91
  • Pin Count
  • 144
  • Supply Voltage-Max (Vsup)
  • 3.6V
  • Power Supplies
  • 3.3V
  • Supply Voltage-Min (Vsup)
  • 3V
  • Interface
  • Ethernet, I2C, IrDA, SPI, UART, USART
  • Memory Size
  • 256kB
  • Oscillator Type
  • Internal
  • Number of I/O
  • 32
  • RAM Size
  • 16K x 8
  • Voltage - Supply (Vcc/Vdd)
  • 3V~3.6V
  • uPs/uCs/Peripheral ICs Type
  • MICROCONTROLLER
  • Core Processor
  • eZ80
  • Peripherals
  • Brown-out Detect/Reset, POR, PWM, WDT
  • Program Memory Type
  • FLASH
  • Core Size
  • 8-Bit
  • Program Memory Size
  • 256KB 256K x 8
  • Connectivity
  • Ethernet, I2C, IrDA, SPI, UART/USART
  • Supply Current-Max
  • 190mA
  • Bit Size
  • 8
  • Watchdog Timer
  • Yes
  • Access Time
  • 50 μs

Download datasheets and manufacturer documentation for LITTELFUSE EZ80F91NA050EG.

EZ80F91NA050EG Overview


This Microcontroller comes in a 144-LBGA package. This Microcontroller has 32 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 8-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in -40°C~105°C TA Operating Temperature. Microcontroller runs in eZ80® Acclaim!® Series. The size of the program memory of Microcontroller is 256KB 256K x 8. MCU is powered by eZ80 Core Processor. The device belongs to MICROCONTROLLER uPs/uCs/Peripheral ICs Type. The MCU has a number of 144 terminals. Microcontroller comes with 8 bit size. The component always operates in 3.3V supply voltage. MCU chip has NO DMA channels. The part owns 256kB memory size. You can find alternatives through the base part number EZ80F91. MCU's frequency is 50MHz. The device works in YES PWM channels. The pin number of the component remains 144. It has 4 timers/counters. It counts 144 pins. The device is embedded with Z80 CPU family. It has a Z8 core architecture integrated into it.
