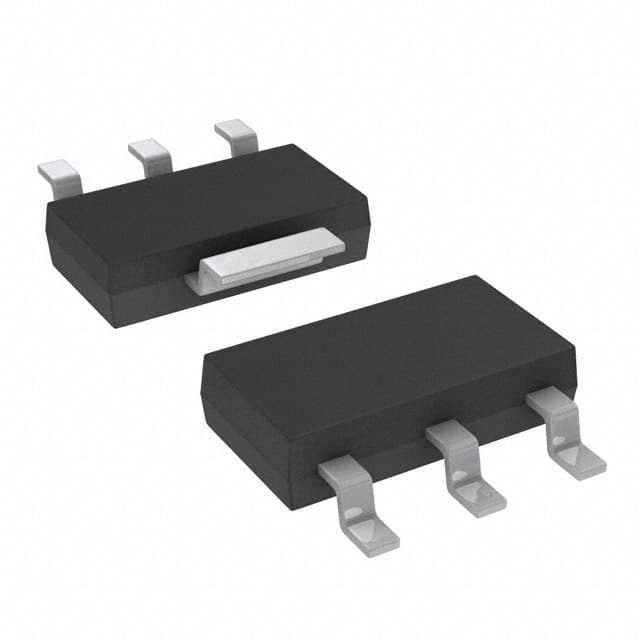

SEMTECH EZ1117CST3.3TRT

Manufacturer No:

EZ1117CST3.3TRT

Manufacturer:

SEMTECH

Package:

TO-261-4, TO-261AA

Description:

Fixed 2.3mm EZ1117 PMIC 4 TO-261-4, TO-261AA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EZ1117CST3.3TRT information

SEMTECH EZ1117CST3.3TRT technical specifications, attributes, parameters and parts with similar specifications to SEMTECH EZ1117CST3.3TRT.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
TO-261-4, TO-261AA

Number of Pins
4

Operating Temperature
0°C~125°C

Packaging
Tape & Reel (TR)

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
4

ECCN Code
EAR99

Packing Method
TAPE AND REEL

Terminal Position
DUAL

Terminal Form
GULL WING

Number of Functions
1

Terminal Pitch
2.3mm

Base Part Number
EZ1117

Pin Count
4

Number of Outputs
1

Voltage - Input (Max)
7V

Output Voltage
3.3V

Output Type
Fixed

Max Output Current
800mA

Output Configuration
Positive

Accuracy
2 %

Output Voltage 1
3.3V

Number of Regulators
1

Min Input Voltage
2.65V

Protection Features
Over Current, Over Temperature

Voltage Dropout (Max)
1.2V @ 800mA

PSRR
72dB (120Hz)

Dropout Voltage
1.1V

Dropout Voltage1-Nom
1.1V

Voltage Tolerance-Max
2%

Min Current Limit
800mA

Input Voltage Absolute-Max
7V

Length
6.5mm

Width
3.5mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for SEMTECH EZ1117CST3.3TRT.

PCN Packaging:

semtechcorporation-sx1239imltrt-pcnpackaging-9522.pdf

EZ1117CST3.3TRT Overview

An Tape & Reel (TR) case is included with the delivery. There is a TO-261-4, TO-261AA case with the integrated voltage regulator. There are 4 terminations on the battery regulator IC chip and each of them has its own function. In terms of output type, Fixed is what the Regulator IC produces. The electronic component implements 1 Voltage regulator ICs. IC Regulator is possible to alter the range of the operating temperature of Surface Mount in the device. In order for this IC voltage regulator to operate, the temperature has to be kept at 0°C~125°C degrees. In this case, the output function that is configured for this regulator IC is Positive. It has a total of 4 pins on IC voltage regulator. In order to ensure prompt, adequate, and prompt performance, this regulator has 1 outputs in total. In terms of its dropout voltage, it is 1.1V volts. There are 4 pins on the chip. It is EZ1117 for this regulator, just for your information. In order to pack the regulator, the method is TAPE AND REEL. In order to meet the operating requirements of the regulator, its maximal output current reaches 800mA. It operates in the 13mA Quiescent Current state.

EZ1117CST3.3TRT Features

1.1V dropout voltage
TAPE AND REEL method of packing
Over Current, Over Temperature Protection Features
Positive Output Configuration
Fixed Output Type

EZ1117CST3.3TRT Applications

There are a lot of Semtech Corporation
EZ1117CST3.3TRT Linear Voltage Regulators applications.

Camera
Video equipment
CPU power supply
Switching regulator
Multiple-power supply system
Digital audio player
Digital TV
Smartcard
Industrial equipment
DVD and CD-ROM drive
