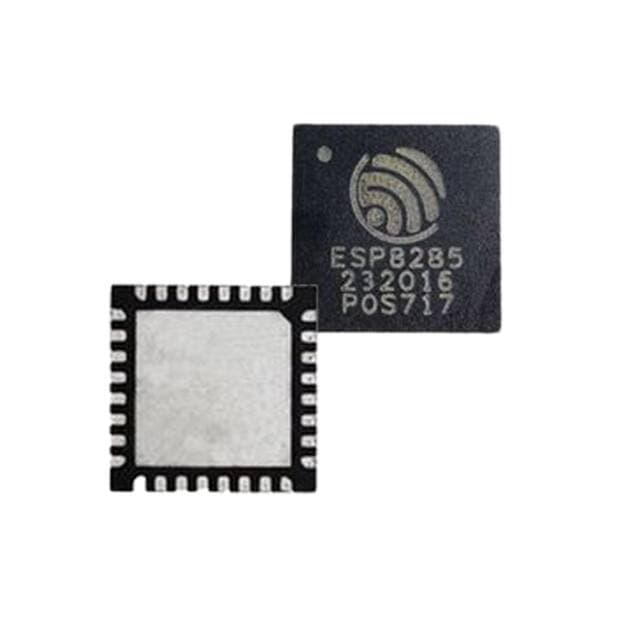

Espressif Systems ESP8285H16

Manufacturer No:

ESP8285H16

Manufacturer:

Espressif Systems

Package:

32-VFQFN Exposed Pad

Description:

TxRx + MCU 2.4GHz 2.7V~3.6V I2C, I2S, SPI, UART 54Mbps 50mA~56mA - Receiving 120mA~170mA - Transmitting 8 32-VFQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ESP8285H16 information

Espressif Systems ESP8285H16 technical specifications, attributes, parameters and parts with similar specifications to Espressif Systems ESP8285H16.

Type
Parameter

Factory Lead Time
4 Weeks

Package / Case
32-VFQFN Exposed Pad

Packaging
Tape & Reel (TR)

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Type
TxRx + MCU

Voltage - Supply
2.7V~3.6V

Frequency
2.4GHz

Protocol
802.11b/g/n

Power - Output
20dBm

RF Family/Standard
WiFi

Sensitivity
-91dBm

Data Rate (Max)
54Mbps

Serial Interfaces
I2C, I2S, SPI, UART

Current - Receiving
50mA~56mA

Current - Transmitting
120mA~170mA

GPIO
8

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Espressif Systems ESP8285H16.

ESP8285H16 Overview

In order to save board space, RF transceiver IC uses the 32-VFQFN Exposed Pad package. As a TxRx + MCU, it has high efficiency and reliability.The transceiver RF' packaging Tape & Reel (TR) provides high reliability.In this RF transceiver, the frequency is 2.4GHz.

ESP8285H16 Features

32-VFQFN Exposed Pad package
TxRx + MCU
Tape & Reel (TR) is used

ESP8285H16 Applications

There are a lot of Espressif Systems
ESP8285H16 RF Transceiver ICs applications.

Internet Radio
Industrial Controls
Chemical Sensors
Security Systems
M2M Communication
Remote Device Management
Low-power IoT applications
LoT applications
Power Amplifier (PA)
Low Noise Amplifier (LNA)
