Manufacturer No:

ESD9L5.0ST5G

Manufacturer:

ONSEMI

Package:

SOD-923

Description:

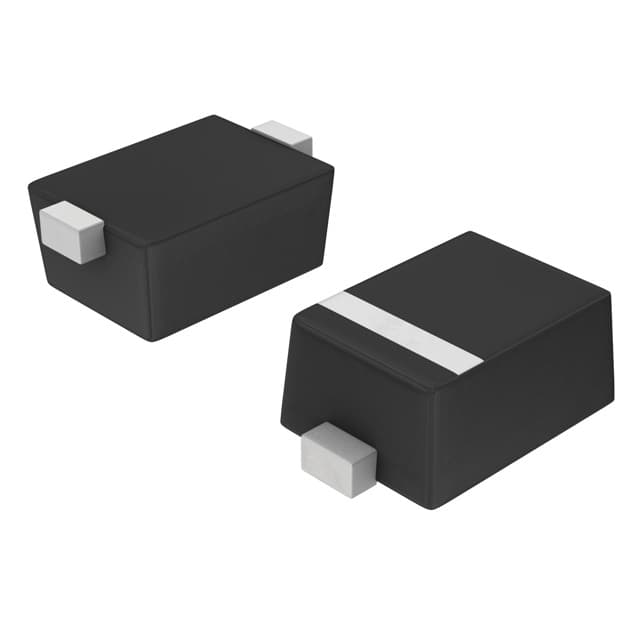

ESD Protection Diode, Ultra Low Capacitance, Unidirectional

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ESD9L5.0ST5G information

ONSEMI ESD9L5.0ST5G technical specifications, attributes, parameters and parts with similar specifications to ONSEMI ESD9L5.0ST5G.

  • Type
  • Parameter
  • PPK Max (W)
  • 0.15
  • Package Type
  • SOD-923-2
  • Interface
  • USB 2.0
  • V(BR) Min (V)
  • 5.4
  • Case Outline
  • 514AB
  • MSL Temp (°C)
  • 260
  • VRWM Max (V)
  • 5
  • MSL Type
  • 1
  • Direction
  • Unidirectional
  • C Max (pF)
  • 0.9
  • IR Max (µA)
  • 1
  • Container Type
  • REEL
  • Container Qty.
  • 8000
  • Number of Lines
  • 1

Download datasheets and manufacturer documentation for ONSEMI ESD9L5.0ST5G.

Package Drawing:

Datasheet:

The ESD9L is designed to protect voltage sensitive components that require ultra-low capacitance from ESD and transient voltage events. Excellent clamping capability, low capacitance, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its low capacitance, it is suited for use in high frequency designs such as USB 2.0 high speed and antenna line applications.
