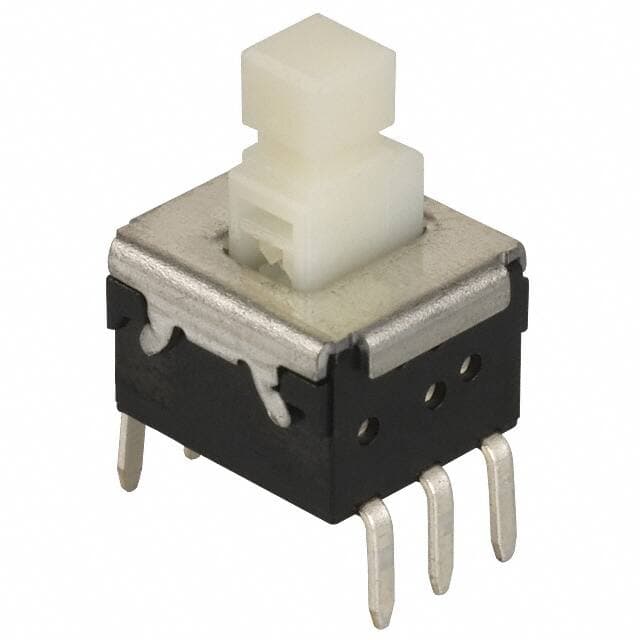

PANASONIC ESB-33133
Manufacturer No:
ESB-33133
Manufacturer:
Package:
Description:
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
ESB-33133 information
PANASONIC ESB-33133 technical specifications, attributes, parameters and parts with similar specifications to PANASONIC ESB-33133.
- Type
- Parameter
- Factory Lead Time
- 14 Weeks
- Contact Plating
- Silver
- Mount
- Through Hole
- Mounting Type
- Through Hole
- Packaging
- Bulk
- Series
- ESB33
- Published
- 2011
- JESD-609 Code
- e3
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Termination
- PC Pin
- ECCN Code
- EAR99
- Type
- Standard
- Terminal Finish
- Tin (Sn)
- Max Operating Temperature
- 80°C
- Min Operating Temperature
- -30°C
- Additional Feature
- LOW PROFILE
- HTS Code
- 8536.50.90.31
- Voltage - Rated DC
- 14V
- Current Rating (Amps)
- 200mA DC
- Packing Method
- BAG
- Orientation
- Vertical
- Current Rating
- 200mA
- Body Breadth
- 9.85 mm
- Actuator Type
- Plunger for Cap
- Circuit
- DPDT
- Switch Function
- On-On
- Color - Actuator/Cap
- White
- Contact Current(DC)-Max
- 0.2A
- Contact Current Rating
- 200mA
- Contact (DC) Max Rating R Load
- .2A@14VDC
- Operating Force-Max
- 4 N
- Length
- 10mm
- Width
- 10mm
- Body Height
- 6mm
- REACH SVHC
- No SVHC
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for PANASONIC ESB-33133.
Features of the Panasonic Pushbutton Switch ESB-33133 include:
• DPDT design
• Rated for 0.2A at 14V
• Pushbutton actuator
• Reliable and low-power
The Panasonic Pushbutton Switch ESB-33133 is suitable for a variety of applications, including:
• Automotive
• Industrial
• Home appliances
• Lighting
• Audio/visual equipment
• Security systems
