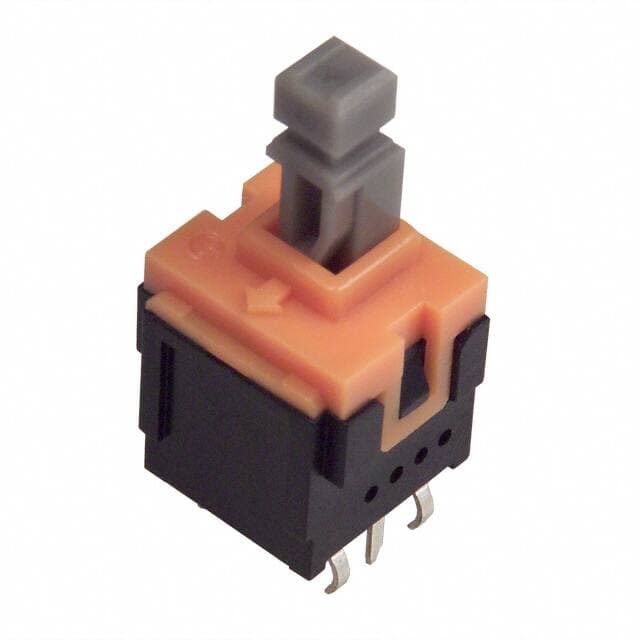

PANASONIC ESB-30B102

Manufacturer No:

ESB-30B102

Manufacturer:

PANASONIC

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ESB-30B102 information

PANASONIC ESB-30B102 technical specifications, attributes, parameters and parts with similar specifications to PANASONIC ESB-30B102.

Type
Parameter

Factory Lead Time
10 Weeks

Contact Plating
Silver

Mount
PCB, Through Hole

Mounting Type
Through Hole

Packaging
Bulk

Series
ESB30

Published
2010

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
PC Pin

ECCN Code
EAR99

Type
Standard

Terminal Finish
Tin (Sn)

Max Operating Temperature
80°C

Min Operating Temperature
-30°C

HTS Code
8536.50.90.31

Voltage - Rated DC
14V

Current Rating (Amps)
200mA DC

Packing Method
BOX; TRAY

Orientation
Vertical

Current Rating
200mA

Termination Style
PC Pin

Actuator Type
Plunger for Cap

Circuit
DPDT

Switch Function
On-On

Color - Actuator/Cap
Gray

Contact Current(DC)-Max
0.2A

Contact Current Rating
200mA

Contact (DC) Max Rating R Load
.2A@14VDC

Operating Force-Max
3 N

Length
10mm

Width
10mm

Body Height
12.5mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for PANASONIC ESB-30B102.

Datasheets:

panasonicelectroniccomponents-esb30b102-datasheets-1080.pdf

Description:

The Panasonic Pushbutton Switches ESB-30B102 is an electromechanical switch push switch with a double-pole double-throw (DPDT) configuration. It has a current rating of 0.2A and is supplied in a tray.

Features:

• DPDT configuration
• Current rating of 0.2A
• Supplied in a tray
• N.O./N.C. contact type

Applications:

The Panasonic Pushbutton Switches ESB-30B102 is suitable for a wide range of applications, including industrial control, automotive, and consumer electronics. It can be used for switching, controlling, and regulating electrical circuits.
