LEMO ERA.1S.250.CTL

Manufacturer No:

ERA.1S.250.CTL

Manufacturer:

LEMO

Package:

Description:

Receptacle, Female Socket Push-Pull 50Ohm Bulk Coaxial Solder Cup 1 Port Polytetrafluoroethylene (PTFE) -55°C~250°C

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ERA.1S.250.CTL information

LEMO ERA.1S.250.CTL technical specifications, attributes, parameters and parts with similar specifications to LEMO ERA.1S.250.CTL.

Type
Parameter

Factory Lead Time
12 Weeks

Contact Material
Copper

Mount
Bulkhead, Panel, Rear Side Nut

Mounting Type
Panel Mount

Mounting Feature
Bulkhead - Rear Side Nut

Shell Material
Metal

Dielectric Material
Polytetrafluoroethylene (PTFE)

Body Material
Brass

Center Contact Plating
Gold

Center Contact Material
Beryllium Copper

Operating Temperature
-55°C~250°C

Packaging
Bulk

Series
1S

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Connector Type
Receptacle, Female Socket

Gender
Receptacle

HTS Code
8536.69.40.20

Fastening Type
Push-Pull

Voltage - Rated DC
4.2kV

Contact Finish - Mating
NOT SPECIFIED

Ingress Protection
IP50 - Dust Protected

Current Rating
12A

Contact Gender
Female

Housing Color
Silver

Impedance
50Ohm

Connector Style
Coaxial

Number of Ports
1

Mating Cycles
1000

Contact Termination
Solder Cup

Includes

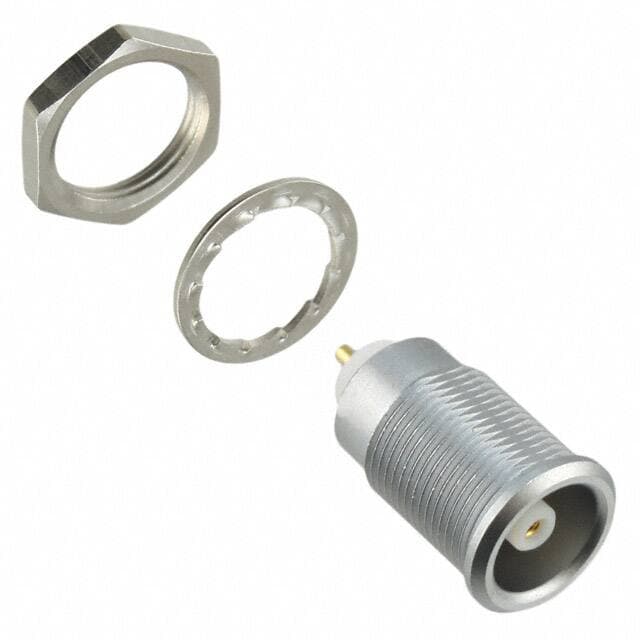

3 pcs - 1 Connector, 1 Lockwasher, 1 Nut

Body Finish
Chrome

Cable Group
RG-122, 174, 174A, 178B, 188A, 196A, 316B

Shield Termination
Solder

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Ratings
IP50

Download datasheets and manufacturer documentation for LEMO ERA.1S.250.CTL.

ERA.1S.250.CTL Description

The ERA.1S.250.CTL is a 1S Series Connector.

ERA.1S.250.CTL Features

Security of the Push-Pull self-latching system
Solder contacts, print contacts only for coaxial and triaxial configurations
360° screening for full EMC shielding.
coaxial, triaxial and mixed contact configurations
polarisation by stepped insert (half-moon)
up to 8 coaxial contacts

ERA.1S.250.CTL Applications

Industrial
