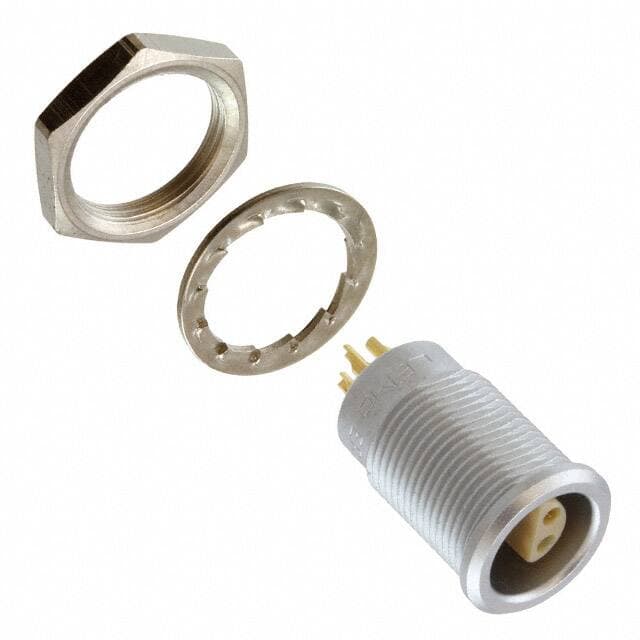

LEMO ERA.0S.303.CLL

Manufacturer No:

ERA.0S.303.CLL

Manufacturer:

LEMO

Package:

Description:

Receptacle, Female Sockets and Male Pins Brass Panel Mount 3 Positions Solder Cup Gold Chrome Bulk Keyed Push-Pull

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ERA.0S.303.CLL information

LEMO ERA.0S.303.CLL technical specifications, attributes, parameters and parts with similar specifications to LEMO ERA.0S.303.CLL.

Type
Parameter

Factory Lead Time
12 Weeks

Contact Material
Brass, Bronze

Mount
Bulkhead, Panel, Rear Side Nut

Mounting Type
Panel Mount

Mounting Feature
Bulkhead - Rear Side Nut

Shell Material
Brass

Insert Material
Polyetheretherketone (PEEK)

Operating Temperature
-55°C~250°C

Packaging
Bulk

Series
0S

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Solder Cup

Connector Type
Receptacle, Female Sockets and Male Pins

Number of Positions
3

Color
Silver

Additional Feature
POLARIZED

Fastening Type
Push-Pull

Contact Finish - Mating
Gold

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Mixed Contacts
NO

Total Number of Contacts
3

Orientation
Keyed

Shielding
Shielded

Ingress Protection
IP50 - Dust Protected

Current Rating
7A

Shell Finish
Chrome

Shell Size - Insert
303

Contact Gender
Female

Empty Shell
NO

Backshell Type
SOLID

Environmental Characteristics
CORROSION RESISTANT

Coupling Type
SNAP

Material Flammability Rating
UL94 V-0

RoHS Status
RoHS Compliant

Ratings
IP50

Download datasheets and manufacturer documentation for LEMO ERA.0S.303.CLL.

ERA.0S.303.CLL Overview

This product is packaged in a Receptacle, Female Sockets and Male Pins carton.Panel Mount is the mounting type for the device.The product is packaged in a Bulk case.It's part of the 0S Series.In addition, there are other features, such as POLARIZED, to mention just a few.Mounting of the part is based on Bulkhead, Panel, Rear Side Nut.It runs at -55°C~250°C Operating Temperature.

ERA.0S.303.CLL Features

0S series

ERA.0S.303.CLL Applications

There are a lot of LEMO
ERA.0S.303.CLL Circular Connectors applications.

Industrial Automation
Transportation
Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
