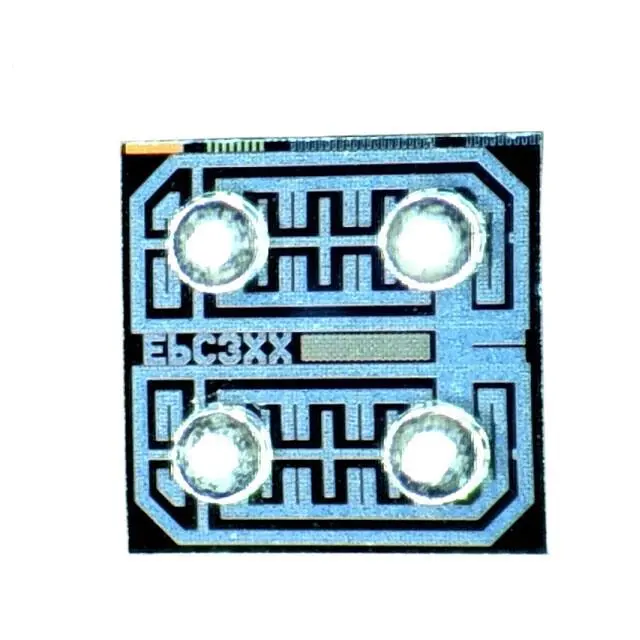

ESPROS Photonics AG EPC330-CSP32-001

Manufacturer No:

EPC330-CSP32-001

Manufacturer:

ESPROS Photonics AG

Package:

32-XFBGA, CSPBGA

Description:

Surface Mount -40°C~85°C Tape & Reel (TR) Wavelength: 850nm 32-XFBGA, CSPBGA 20V 6.84mm2 300ns

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EPC330-CSP32-001 information

ESPROS Photonics AG EPC330-CSP32-001 technical specifications, attributes, parameters and parts with similar specifications to ESPROS Photonics AG EPC330-CSP32-001.

Type
Parameter

Factory Lead Time
2 Weeks

Mounting Type
Surface Mount

Package / Case
32-XFBGA, CSPBGA

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Part Status
Active

Viewing Angle
150°

Response Time
300ns

Voltage - DC Reverse (Vr) (Max)
20V

Wavelength
850nm

Spectral Range
400nm ~ 1030nm

Active Area
6.84mm2

Current - Dark (Typ)
640pA

Color - Enhanced
Infrared (NIR)/Red

Responsivity @ nm
0.6 A/W @ 850nm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ESPROS Photonics AG EPC330-CSP32-001.

EPC330-CSP32-001 Overview

As a protective measure, these photodiodes are packaged in the Tape & Reel (TR). To ensure safety, the photodiodes are packaged in 32-XFBGA, CSPBGA packages. Reverse-bias photodiodes can withstand a maximum of 20V in continuous reverse-bias mode.

EPC330-CSP32-001 Features

Operating Temperature: -40°C~85°C
Packaging: Tape & Reel (TR)
Spectral Range: 400nm ~ 1030nm
Response Time: 300ns
Viewing Angle: 150°
Responsivity @ nm: 0.6 A/W @ 850nm

EPC330-CSP32-001 Applications

There are a lot of ESPROS Photonics AG
EPC330-CSP32-001 Photodiodes applications.

Infrared data transmission
Photo interrupters
Shaft encoders
Electronic Equipment
Industrial Automation
Machine Controls
Light Barriers
Vision Controls
Measurement Levelling
High speed photo detectors
