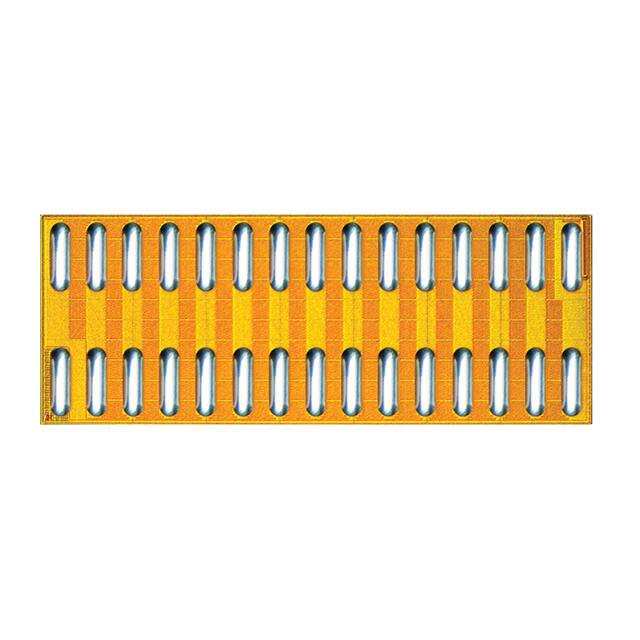

EPC EPC2023

Manufacturer No:

EPC2023

Manufacturer:

EPC

Package:

Die

Description:

GaNFET (Gallium Nitride) N-Channel Tape & Reel (TR) 1.3mOhm @ 40A, 5V 2300pF @ 15V 30V Die

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EPC2023 information

EPC EPC2023 technical specifications, attributes, parameters and parts with similar specifications to EPC EPC2023.

Type
Parameter

Factory Lead Time
12 Weeks

Mounting Type
Surface Mount

Package / Case
Die

Supplier Device Package
Die

Packaging
Tape & Reel (TR)

Series
eGaN®

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Technology
GaNFET (Gallium Nitride)

FET Type
N-Channel

Rds On (Max) @ Id, Vgs
1.3mOhm @ 40A, 5V

Vgs(th) (Max) @ Id
2.5V @ 20mA

Input Capacitance (Ciss) (Max) @ Vds
2300pF @ 15V

Current - Continuous Drain (Id) @ 25°C
60A Ta

Drain to Source Voltage (Vdss)
30V

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for EPC EPC2023.

EPC2023 Overview

CI refers to the capacitance between two input terminals on an op amp with either input grounded, and this device's maximum input capacitance is 2300pF @ 15V.The transistor must receive a 30V drain to source voltage (Vdss) in order to function.

EPC2023 Features

a 30V drain to source voltage (Vdss)

EPC2023 Applications

There are a lot of EPC
EPC2023 applications of single MOSFETs transistors.

DC/DC converters
Power Tools
Motor Drives and Uninterruptible Power Supples
Synchronous Rectification
Battery Protection Circuit
Telecom 1 Sever Power Supplies
Industrial Power Supplies
PFC stages, hard switching PWM stages and resonant switching
PWM stages for e.g. PC Silverbox, Adapter, LCD & PDP TV,
Lighting, Server, Telecom and UPS.
