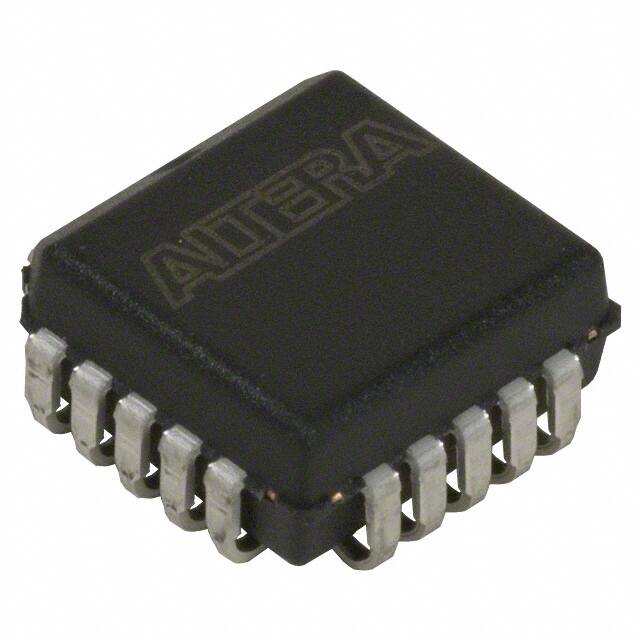

INTEL EPC1LI20N
INTEL EPC1LI20N

INTEL EPC1LI20N

Manufacturer No:

EPC1LI20N

Manufacturer:

INTEL

Package:

20-LCC (J-Lead)

Description:

Surface Mount 1Mb Mb Tray Configuration Proms for FPGAs 3 (168 Hours) OTP EPC Obsolete EPC1 compliant

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EPC1LI20N information

INTEL EPC1LI20N technical specifications, attributes, parameters and parts with similar specifications to INTEL EPC1LI20N.

  • Type
  • Parameter
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 20-LCC (J-Lead)
  • Surface Mount
  • YES
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Tray
  • Series
  • EPC
  • Published
  • 2016
  • JESD-609 Code
  • e3
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 20
  • ECCN Code
  • 3A991.B.2.A
  • Terminal Finish
  • MATTE TIN
  • Additional Feature
  • IT CAN ALSO OPERATE AT 5V SUPPLY
  • HTS Code
  • 8542.32.00.61
  • Technology
  • MOS
  • Voltage - Supply
  • 3V~3.6V 4.5V~5.5V
  • Terminal Position
  • QUAD
  • Terminal Form
  • J BEND
  • Peak Reflow Temperature (Cel)
  • 245
  • Number of Functions
  • 1
  • Supply Voltage
  • 3.3V
  • Terminal Pitch
  • 1.27mm
  • Reach Compliance Code
  • compliant
  • Base Part Number
  • EPC1
  • JESD-30 Code
  • S-PQCC-J20
  • Qualification Status
  • Not Qualified
  • Supply Voltage-Max (Vsup)
  • 3.6V
  • Power Supplies
  • 3.3/5V
  • Supply Voltage-Min (Vsup)
  • 3V
  • Programmable Type
  • OTP
  • Memory Size
  • 1Mb
  • Operating Mode
  • SYNCHRONOUS
  • Clock Frequency
  • 10MHz
  • Supply Current-Max
  • 0.05mA
  • Organization
  • 1046496X1
  • Output Characteristics
  • 3-STATE
  • Memory Width
  • 1
  • Memory Density
  • 1046496 bit
  • Parallel/Serial
  • SERIAL
  • I/O Type
  • COMMON
  • Memory IC Type
  • CONFIGURATION MEMORY
  • Length
  • 8.9662mm
  • Height Seated (Max)
  • 4.572mm
  • Width
  • 8.9662mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for INTEL EPC1LI20N.

Datasheets:

PCN Obsolescence/ EOL:

PCN Packaging:

EPC1LI20N Overview


A neat 20-LCC (J-Lead) package is used.Packaging for external use.A qualified individual who has the ability to operate within -40°C~85°C.Using OTP, you can program it.A voltage of 3V~3.6V 4.5V~5.5V is applied to it.The memory device is mounted in Surface Mount.Data storage is limited to 1Mb bytes.Other related parts can be found by searching "EPC1".3.3V is the required supply voltage.Different functions are associated with 20 terminations.A maximum voltage of 3.6V can be applied to this memory device.It is necessary to supply the device with a minimum voltage of 3V.A CONFIGURATION MEMORY memory chip is shown here.FPGA is recommended that the reflow soldering temperature be maintained at no more than 245 during the process.In this memory, data is transmitted using the SERIAL process.Memory chips can operate at a voltage no higher than 0.05mA.In terms of speed, this is a memory IC that operates at a 10MHz frequency.A COMMON configuration is used for the memory's I/O.3.3/5V power supplies are recommended.In order to better serve the needs, IT CAN ALSO OPERATE AT 5V SUPPLY is included.The device belongs to the EPC series.

EPC1LI20N Features


Operating temperature: -40°C~85°C.
OTP program capability.
CONFIGURATION MEMORY memory IC.
SERIAL processing.
COMMON I/O equipped.


EPC1LI20N Applications


There are a lot of Intel
EPC1LI20N applications of configuration proms for FPGAs.


  • cell phones
  • eSRAM
  • mainframes
  • multimedia computers
  • networking
  • personal computers
  • servers
  • supercomputers
  • telecommunications
  • workstations,
