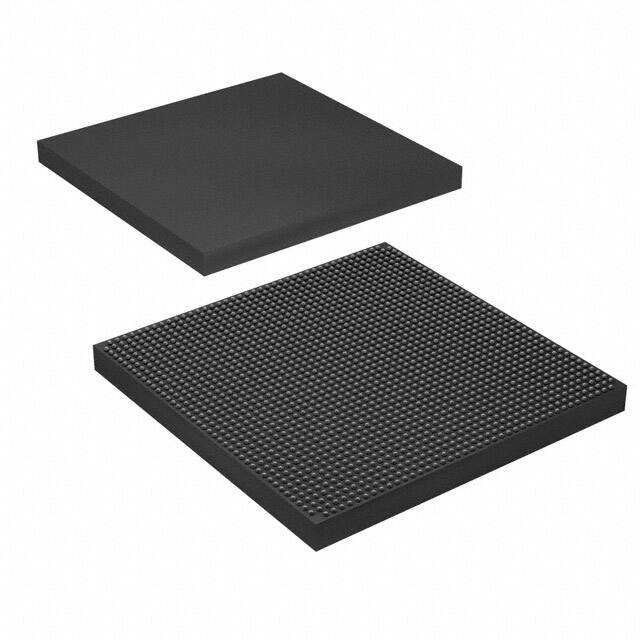

INTEL EP4SE820F43C4N
INTEL EP4SE820F43C4N

INTEL EP4SE820F43C4N

Manufacturer No:

EP4SE820F43C4N

Manufacturer:

INTEL

Package:

1760-BBGA, FCBGA

Description:

3.7mm mm FPGAs STRATIX® IV E Series 1760-BBGA, FCBGA 1mm mm

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EP4SE820F43C4N information

INTEL EP4SE820F43C4N technical specifications, attributes, parameters and parts with similar specifications to INTEL EP4SE820F43C4N.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 1760-BBGA, FCBGA
  • Surface Mount
  • YES
  • Operating Temperature
  • 0°C~85°C TJ
  • Packaging
  • Tray
  • Series
  • STRATIX® IV E
  • JESD-609 Code
  • e1
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • ECCN Code
  • 3A001.A.7.A
  • Terminal Finish
  • Tin/Silver/Copper (Sn/Ag/Cu)
  • HTS Code
  • 8542.39.00.01
  • Subcategory
  • Field Programmable Gate Arrays
  • Technology
  • CMOS
  • Voltage - Supply
  • 0.87V~0.93V
  • Terminal Position
  • BOTTOM
  • Terminal Form
  • BALL
  • Peak Reflow Temperature (Cel)
  • 245
  • Supply Voltage
  • 0.9V
  • Terminal Pitch
  • 1mm
  • Time@Peak Reflow Temperature-Max (s)
  • 40
  • Base Part Number
  • EP4SE820
  • JESD-30 Code
  • S-PBGA-B1760
  • Power Supplies
  • 0.91.2/31.52.5V
  • Number of I/O
  • 1120
  • Clock Frequency
  • 717MHz
  • Programmable Logic Type
  • FIELD PROGRAMMABLE GATE ARRAY
  • Number of Logic Elements/Cells
  • 813050
  • Total RAM Bits
  • 34093056
  • Number of LABs/CLBs
  • 32522
  • Length
  • 42.5mm
  • Height Seated (Max)
  • 3.7mm
  • Width
  • 42.5mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for INTEL EP4SE820F43C4N.

Datasheets:

PCN Packaging:

EP4SE820F43C4N Overview


There is a 1760-BBGA, FCBGA package that includes this component. FIELD PROGRAMMABLE GATE ARRAY is the component of this type of FPGA. 1120 I/Os are available for transferring data more efficiently. A fundamental building block consists of 813050 logic elements/cells. It is powered from a supply voltage of 0.9V. Field Programmable Gate Arrays family FPGA part. The Surface Mount-slot on the development board allows you to attach the FPGA module. A supply voltage of 0.87V~0.93V is needed in order for fpga chips to operate. As part of the STRATIX® IV E series of FPGAs, it is a type of FPGA. While operating, the operating temperature should be kept within a range of 0°C~85°C TJ. As a space-saving measure, this FPGA model is contained within Tray. There are 34093056 RAM bits that are available with this device. In order to find related parts, you can use its base part number EP4SE820. 32522 LABs and CLBs are built into this FPGA. Power is provided by a 0.91.2/31.52.5V battery that is included with the device. Usually, fpga semiconductor uses a 717MHz crystal.

EP4SE820F43C4N Features


1120 I/Os
Up to 34093056 RAM bits


EP4SE820F43C4N Applications


There are a lot of Intel
EP4SE820F43C4N FPGAs applications.


  • Device controllers
  • Software-defined radio
  • Random logic
  • ASIC prototyping
  • Medical imaging
  • Computer hardware emulation
  • Integrating multiple SPLDs
  • Voice recognition
  • Cryptography
  • Filtering and communication encoding
