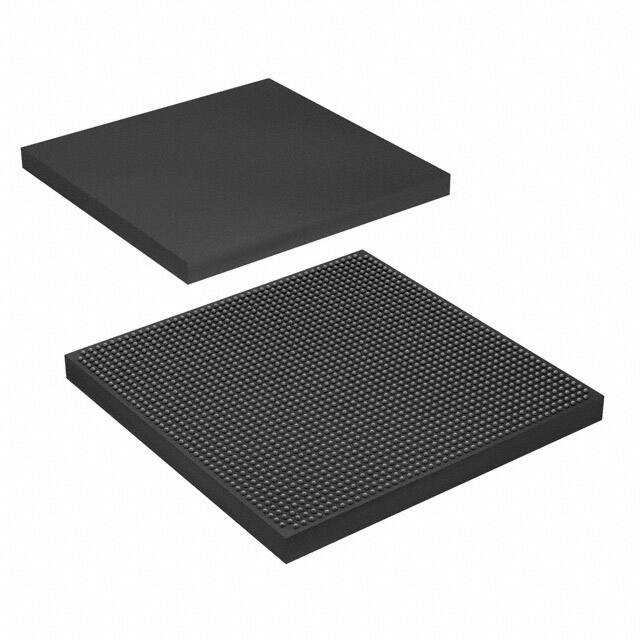

INTEL EP4S100G5F45I2
Manufacturer No:
EP4S100G5F45I2
Manufacturer:
Package:
1932-BBGA, FCBGA
Description:
3.6mm mm FPGAs STRATIX® IV GT Series 1932-BBGA, FCBGA 1mm mm
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
EP4S100G5F45I2 information
INTEL EP4S100G5F45I2 technical specifications, attributes, parameters and parts with similar specifications to INTEL EP4S100G5F45I2.
- Type
- Parameter
- Mounting Type
- Surface Mount
- Package / Case
- 1932-BBGA, FCBGA
- Surface Mount
- YES
- Operating Temperature
- 0°C~100°C TJ
- Packaging
- Tray
- Series
- STRATIX® IV GT
- JESD-609 Code
- e1
- Part Status
- Not For New Designs
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- ECCN Code
- 3A001.A.7.A
- Terminal Finish
- Tin/Silver/Copper (Sn/Ag/Cu)
- HTS Code
- 8542.39.00.01
- Subcategory
- Field Programmable Gate Arrays
- Technology
- CMOS
- Voltage - Supply
- 0.92V~0.98V
- Terminal Position
- BOTTOM
- Terminal Form
- BALL
- Peak Reflow Temperature (Cel)
- 245
- Supply Voltage
- 0.95V
- Terminal Pitch
- 1mm
- Time@Peak Reflow Temperature-Max (s)
- 40
- Base Part Number
- EP4S100G5
- JESD-30 Code
- S-PBGA-B
- Number of Outputs
- 781
- Power Supplies
- 0.951.2/31.52.5V
- Number of I/O
- 781
- Clock Frequency
- 800MHz
- Number of Inputs
- 781
- Programmable Logic Type
- FIELD PROGRAMMABLE GATE ARRAY
- Number of Logic Elements/Cells
- 531200
- Total RAM Bits
- 28033024
- Number of LABs/CLBs
- 21248
- Length
- 45mm
- Height Seated (Max)
- 3.6mm
- Width
- 45mm
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for INTEL EP4S100G5F45I2.
Datasheets:
EP4S100G5F45I2 Overview
There is a 1932-BBGA, FCBGA package that includes this component. FIELD PROGRAMMABLE GATE ARRAY is the component of this type of FPGA. 781 I/Os are available for transferring data more efficiently. A fundamental building block consists of 531200 logic elements/cells. It is powered from a supply voltage of 0.95V. Field Programmable Gate Arrays family FPGA part. The Surface Mount-slot on the development board allows you to attach the FPGA module. A supply voltage of 0.92V~0.98V is needed in order for fpga chips to operate. As part of the STRATIX® IV GT series of FPGAs, it is a type of FPGA. While operating, the operating temperature should be kept within a range of 0°C~100°C TJ. The device has 781 outputs that are integrated into it. As a space-saving measure, this FPGA model is contained within Tray. There are 28033024 RAM bits that are available with this device. In order to find related parts, you can use its base part number EP4S100G5. 21248 LABs and CLBs are built into this FPGA. Power is provided by a 0.951.2/31.52.5V battery that is included with the device. Usually, fpga semiconductor uses a 800MHz crystal.
EP4S100G5F45I2 Features
781 I/Os
Up to 28033024 RAM bits
EP4S100G5F45I2 Applications
There are a lot of Intel
EP4S100G5F45I2 FPGAs applications.
- Device controllers
- Software-defined radio
- Random logic
- ASIC prototyping
- Medical imaging
- Computer hardware emulation
- Integrating multiple SPLDs
- Voice recognition
- Cryptography
- Filtering and communication encoding
