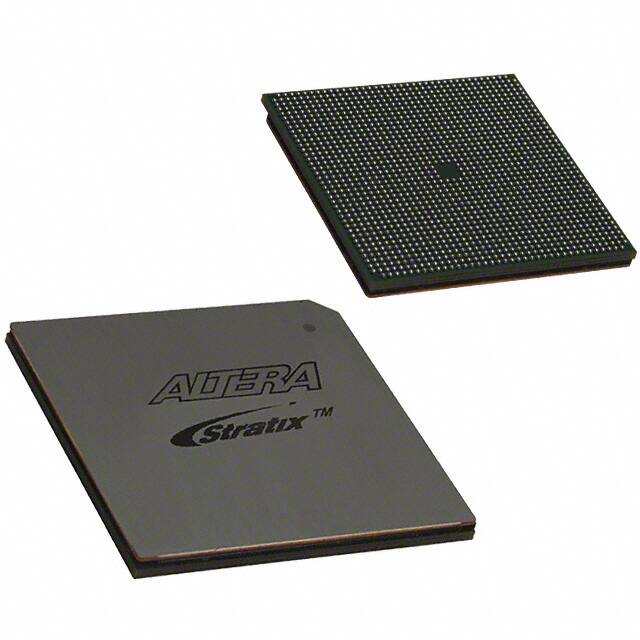

INTEL EP2S130F1508I4N
Manufacturer No:
EP2S130F1508I4N
Manufacturer:
Package:
1508-BBGA, FCBGA
Description:
3.5mm mm FPGAs Stratix® II Series 1508-BBGA, FCBGA 1mm mm
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
EP2S130F1508I4N information
INTEL EP2S130F1508I4N technical specifications, attributes, parameters and parts with similar specifications to INTEL EP2S130F1508I4N.
- Type
- Parameter
- Factory Lead Time
- 8 Weeks
- Mounting Type
- Surface Mount
- Package / Case
- 1508-BBGA, FCBGA
- Surface Mount
- YES
- Operating Temperature
- -40°C~100°C TJ
- Packaging
- Tray
- Series
- Stratix® II
- JESD-609 Code
- e1
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- ECCN Code
- 3A001.A.7.A
- Terminal Finish
- TIN SILVER COPPER
- HTS Code
- 8542.39.00.01
- Subcategory
- Field Programmable Gate Arrays
- Technology
- CMOS
- Voltage - Supply
- 1.15V~1.25V
- Terminal Position
- BOTTOM
- Terminal Form
- BALL
- Peak Reflow Temperature (Cel)
- 245
- Supply Voltage
- 1.2V
- Terminal Pitch
- 1mm
- Time@Peak Reflow Temperature-Max (s)
- 40
- Base Part Number
- EP2S130
- JESD-30 Code
- S-PBGA-B1508
- Qualification Status
- Not Qualified
- Power Supplies
- 1.21.5/3.33.3V
- Number of I/O
- 1126
- Clock Frequency
- 717MHz
- Programmable Logic Type
- FIELD PROGRAMMABLE GATE ARRAY
- Number of Logic Elements/Cells
- 132540
- Total RAM Bits
- 6747840
- Number of LABs/CLBs
- 6627
- Combinatorial Delay of a CLB-Max
- 5.117 ns
- Length
- 40mm
- Height Seated (Max)
- 3.5mm
- Width
- 40mm
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for INTEL EP2S130F1508I4N.
Datasheets:
EP2S130F1508I4N Overview
Fpga chips is supplied in the 1508-BBGA, FCBGA package. This kind of FPGA is composed of FIELD PROGRAMMABLE GATE ARRAY. Fpga chips is programmed wFpga chipsh 1126 I/Os for transferring data in a more coherent manner. There are 132540 logic elements/cells to form a fundamental building block. Fpga chips is powered from a supply voltage of 1.2V. This FPGA part belongs to the family of Field Programmable Gate Arrays. This FPGA module can be attached to the development board with a Surface Mount. Fpga chips operates wFpga chipsh a supply voltage of 1.15V~1.25V. It is a type of FPGA belonging to the Stratix® II seies. The operating temperature should be kept at -40°C~100°C TJ when operating. There are 1118 outputs incorporated in this device. This FPGA model is contained in Tray for space saving. The RAM bits that this device offer is 6747840. Its base part number EP2S130 can be used to find related parts. This FPGA is built as an array of 6627 LABs/CLBs. Fpga electronics operates from a 1.21.5/3.33.3V power supply. Typically, fpga semiconductor uses a crystal oscillating at 717MHz .
EP2S130F1508I4N Features
1126 I/Os
Up to 6747840 RAM bits
EP2S130F1508I4N Applications
There are a lot of Intel
EP2S130F1508I4N FPGAs applications.
- Digital signal processing
- Bioinformatics
- Device controllers
- Software-defined radio
- Random logic
- ASIC prototyping
- Medical imaging
- Computer hardware emulation
- Integrating multiple SPLDs
- Voice recognition
