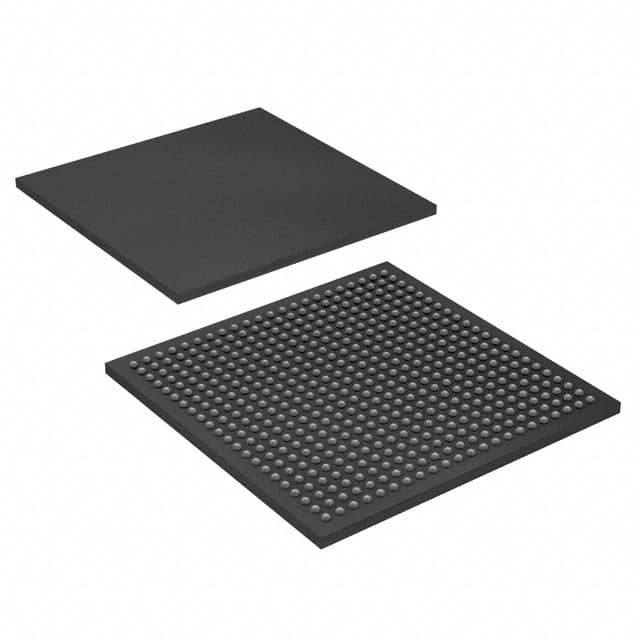

INTEL EP20K200EFC484-1X
INTEL EP20K200EFC484-1X

INTEL EP20K200EFC484-1X

Manufacturer No:

EP20K200EFC484-1X

Manufacturer:

INTEL

Package:

484-BBGA

Description:

2.1mm mm FPGAs APEX-20KE® Series 484-BBGA 1mm mm 484

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EP20K200EFC484-1X information

INTEL EP20K200EFC484-1X technical specifications, attributes, parameters and parts with similar specifications to INTEL EP20K200EFC484-1X.

  • Type
  • Parameter
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 484-BBGA
  • Surface Mount
  • YES
  • Number of I/Os
  • 376
  • Operating Temperature
  • 0°C~85°C TJ
  • Packaging
  • Tray
  • Series
  • APEX-20KE®
  • JESD-609 Code
  • e0
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 484
  • ECCN Code
  • 3A991
  • Terminal Finish
  • Tin/Lead (Sn/Pb)
  • HTS Code
  • 8542.39.00.01
  • Voltage - Supply
  • 1.71V~1.89V
  • Terminal Position
  • BOTTOM
  • Terminal Form
  • BALL
  • Peak Reflow Temperature (Cel)
  • 220
  • Supply Voltage
  • 1.8V
  • Terminal Pitch
  • 1mm
  • Time@Peak Reflow Temperature-Max (s)
  • 30
  • Base Part Number
  • EP20K200
  • JESD-30 Code
  • S-PBGA-B484
  • Number of Outputs
  • 368
  • Power Supplies
  • 1.81.8/3.3V
  • Clock Frequency
  • 160MHz
  • Propagation Delay
  • 1.58 ns
  • Number of Inputs
  • 368
  • Programmable Logic Type
  • LOADABLE PLD
  • Number of Logic Elements/Cells
  • 8320
  • Total RAM Bits
  • 106496
  • Number of Gates
  • 526000
  • Number of LABs/CLBs
  • 832
  • Output Function
  • MACROCELL
  • Number of Dedicated Inputs
  • 4
  • Length
  • 23mm
  • Height Seated (Max)
  • 2.1mm
  • Width
  • 23mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for INTEL EP20K200EFC484-1X.

Datasheets:

PCN Obsolescence/ EOL:

PCN Packaging:

EP20K200EFC484-1X Overview


In the package 484-BBGA, this product is provided. Fpga chips consists of LOADABLE PLD elements. The basic building blocks of logic contain 8320 logic elements/cells. Supply voltage is 1.8V volts. By attaching the Surface Mount connector, you can use this FPGA module with your development board. With a supply voltage of 1.71V~1.89V, this device operates with ease. This is a type of FPGA that is part of the APEX-20KE® series of FPGAs. Fpga chips is necessary to keep the operating temperature wFpga chipshin 0°C~85°C TJ when the device is operating. In this device, 368 outputs are incorporated in order to provide you with maximum flexibility. As a result of space limitations, this FPGA model has been included in Tray. In total, the terminations of this piece are 484. Fpga electronics is worth mentioning that this device provides 106496 bfpga electronics s of RAM. EP20K200 is the base part number that can be used to identify related parts. The FPGA is built as an array of 832 latches or CLBs. This is a battery operated device that operates on 1.81.8/3.3V. A basic building block for this type of building block consists of 526000 gates. Fpga semiconductor typically uses a crystal oscillating at 160MHz. There are a total of 4 dedicated inputs that allow input signals to be detected the status of each input.

EP20K200EFC484-1X Features


Up to 106496 RAM bits


EP20K200EFC484-1X Applications


There are a lot of Intel
EP20K200EFC484-1X FPGAs applications.


  • Voice recognition
  • Cryptography
  • Filtering and communication encoding
  • Aerospace and Defense
  • Medical Electronics
  • Audio
  • Automotive
  • Consumer Electronics
  • Distributed Monetary Systems
  • Data Center
